Genizer GOE-20L Online Liposome Extruder (20000mL, 1000mL) | EMIN.CO.TH

Genizer GOE-20L Online Liposome Extruder (20000mL, 1000mL)

Name: Genizer GOE-20L Online Liposome Extruder (20000mL, 1000mL)
Brand: Genizer

ManufacturerGenizer(View more products from this manufacturer)

ModelGOE-20L

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Sample Size: 20000mL

Cooling: Jacketed

Dimensions: 45cm×40cm×30cm

Weight: 90kg

Min. Sample Size: 1000mL

Application: Liposome formulation up to production scale; Sterile filtration

Max. Pressure: 1,500 psi-6,000 psi

Temp. Limit: 80ºC (176ºF)

Power Type: High pressure pump or high pressure homogenizer

Nano-membrane: Track-etched membrane

Cleaning: Flush to clean/CIP/SIP

Sterilization: Whole unit autoclavable

Standard Features

Parts

1) Liposome Online Extruder

2) 10 pieces of 100nm membrane

Filter Support: Jacketed filter support with pagoda inlet and outlet

Inlet Type: UNF 9/16" high pressure coupling for GOE-20L

Outlet Type: UNF 9/16" high pressure coupling for GOE-20L

Handle: Handle for GOE-800mL, GOE-3000mL and GOE-10000mL

Nano Membrane: 100nm track-etched polycarbonate membrane

Compatibility: Some parts are compatible with Lipex in Northern Lipids

Product Material: 316L stainless steel, viton

Material Standard: Sanitary grade; compliant with FDA and GMP sanitary standards

Genizer Lipid Extrusion Methods

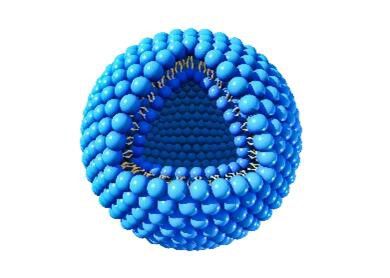

Liposomes have grown as an important biomedical carrier system. One of the most critical factors influencing the performance of liposome is particle size. High-pressure homogenization, extrusion and sonication are methods for reducing liposome size. The extrusion technique is a reasonably mild and quick procedure among them.

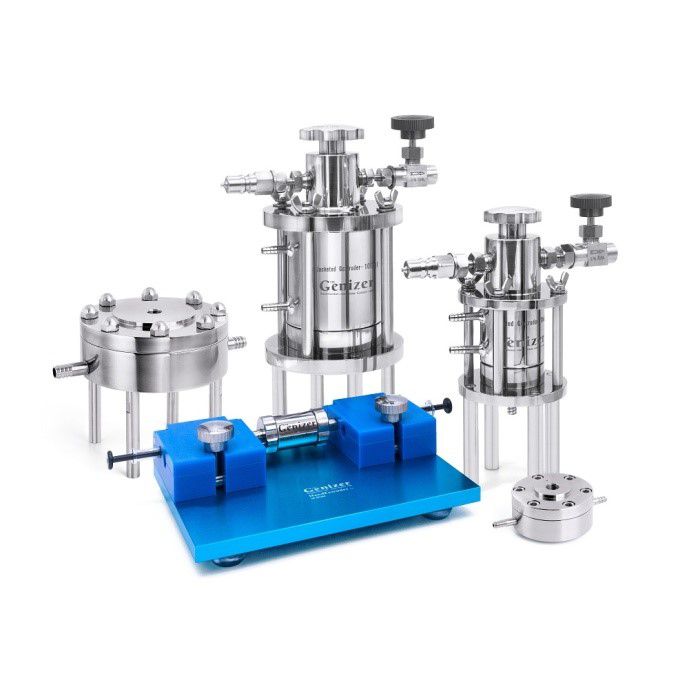

Genizer liposome extrusion line includes jacketed liposome extruders, online extruders and hand driven liposome extruder

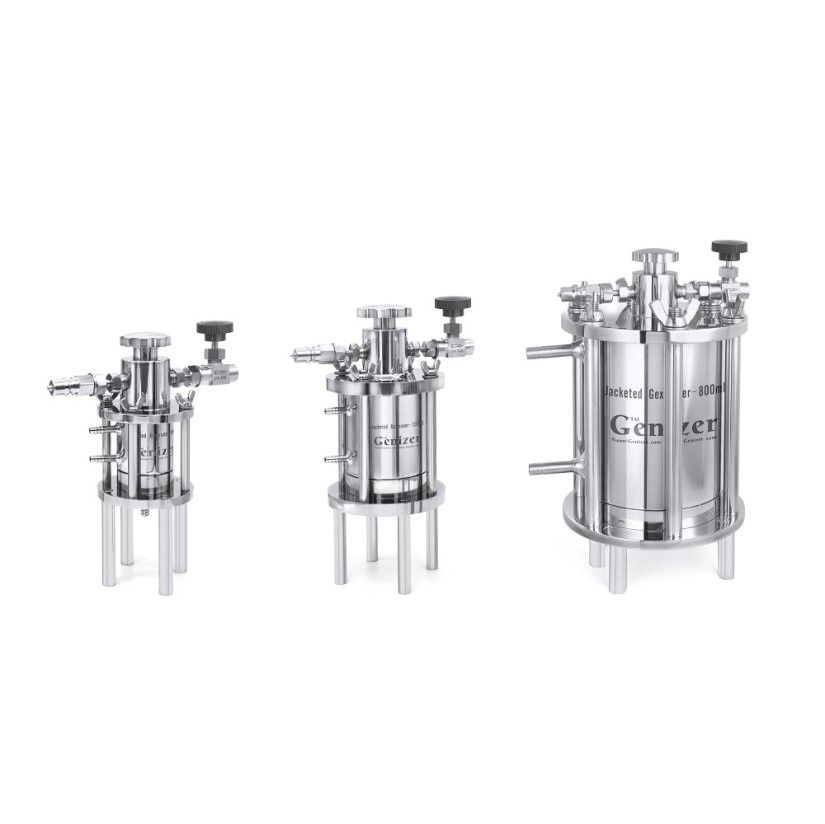

Genizer Jacketed Liposome Extruders:

The Genizer Jacketed Liposome Extruder utilizes a nitrogen gas cylinder to force a drug, protein or gene liposome suspension via a track-etched membrane with a predetermined pore size; generally, 5–10 passes are enough to create a sample with consistent liposome size. The Genizer Jacketed Liposome Extruders are designed to produce uniform unilamellar liposomes and lipopolyplexes with minimal dead volume.

Features:

Capacity of the extruder barrel: 10/100/800/3000mL

Cooling: jacketed thermo barrel

Material: 316L stainless steel, NBR or Viton

Spares: O-rings, collection silicone tubing

Including: Large pore support screen, laser micro pore disc, high pressure nitrogen tubing G5/8

Genizer Online Liposome Extruders:

The Genizer Online Extruder combines with a high pressure homogenizer, which can help decrease the number of passes required to attain a perfect liposome size distribution and desired particle sizes since the homogenizer system (diamond interaction chamber) will help pre-treat the liposome sample to the nanoscale.

Features:

Capacity of the extruder barrel: 25/200/1000mL, 8/20L

Cooling: jacketed thermo barrel

Material: 316L stainless steel, NBR or Viton

Spares: O-rings, collection silicone tubing

Including: Large pore support screen, laser micro pore disc

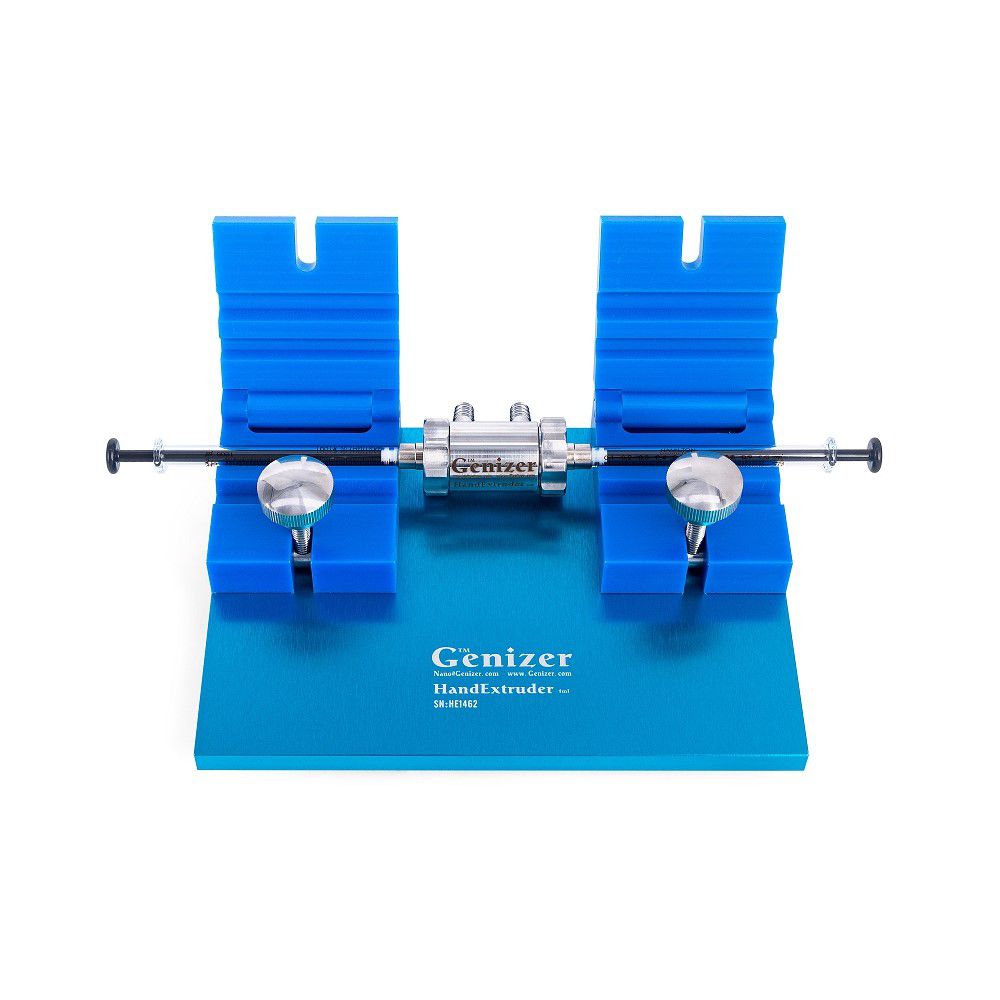

Genizer Hand Driven Liposome Extruders (Mini scale):

The Genizer HandExtruder is a low-cost micro liposome extrusion tool. Two gas-tight syringes, an extrusion body and a stabilizing block are included.

It facilitates liposome preparation with hands-on operation. The user can gradually push the plunger of the filled syringe to drive the sample through the filter membrane within the extruder body, and then gently push the plunger to return the sample to the original syringe. To get a sample with uniform liposome sizes, the user can repeat these two steps five to ten times.

Features:

Catalog No: HandExtruder — 1 mL; HandExtruder — 2.5 mL

Cooling: jacketed thermo barrel

Mini sample size: 0.25 mL

Spares: O-rings

Feed and Collection: Gas-tight syringe, Hamilton
