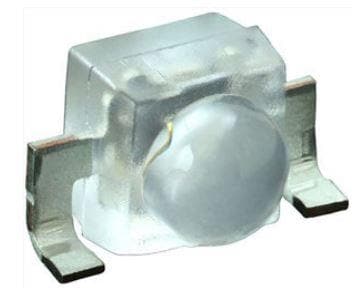

Vishay General Semiconductor VSMB2948SL High Speed Infrared Emitting Diode 940nm, SMD-SL 20mW/sr, +/-25deg.

Width: 2.55 mm

Height: 2.3 mm

Length: 2.3 mm

Fall Time: 15 ns

Rise Time: 15 ns

Beam Angle: 25 deg

Lens Shape: Dome

Wavelength: 940 nm

Unit Weight: 488.400 mg

Power Rating: 160 mW

Viewing Angle: 25 deg

Mounting Style: SMD/SMT

Lens Dimensions: 1.8 mm

Radiant Intensity: 20 mW/sr

Illumination Color: Infrared

Moisture Sensitive: Yes

If - Forward Current: 100 mA

Vf - Forward Voltage: 1.35 V

Vr - Reverse Voltage: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
