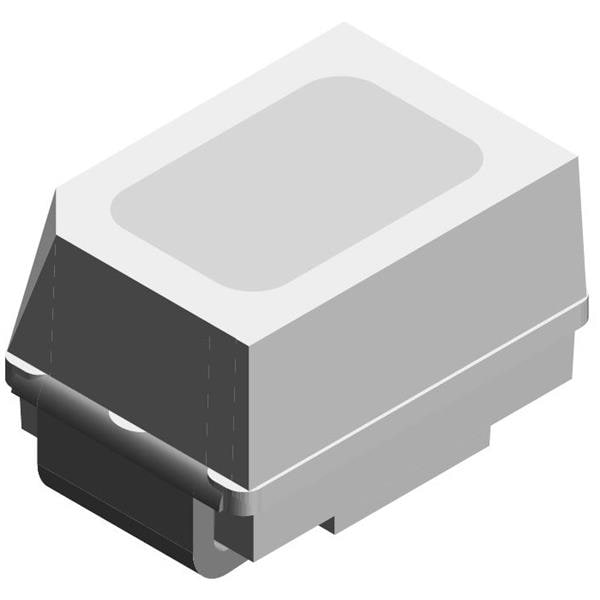

Vishay General Semiconductor VLMR235T2V1-GS08 Single Color LEDs Red 370mcd; 630nm 2.1V Vf MiniLED

Width: 1.4 mm

Height: 1.3 mm

Length: 2.2 mm

Lens Color: Colorless

Lens Shape: Rectangular

Power Rating: 130 mW

Qualification: AEC-Q101

Viewing Angle: 60 deg

Mounting Style: SMD/SMT

Lens Dimensions: 1.5 mm x 0.9 mm

Lens Transparency: Non-Diffused

Illumination Color: Red

Luminous Intensity: 370 mcd

Moisture Sensitive: Yes

If - Forward Current: 50 mA

Vf - Forward Voltage: 2.1 V

Wavelength/Color Temperature: 630 nm

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
