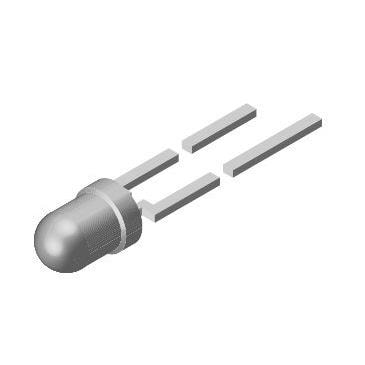

Vishay General Semiconductor TSAL4400 IR Emitters (IR LEDs) 940nm, T-1 36mW/sr, +/-25deg.

Width: 3.2 mm

Height: 4.5 mm

Length: 3.2 mm

Rise Time: 15 ns

Lens Shape: Circular

Wavelength: 940 nm

Unit Weight: 158.098 mg

Power Rating: 210 mW

Viewing Angle: 25 deg

Lens Dimensions: 2.9 mm x 2.9 mm x 3.5 mm

Radiant Intensity: 36 mW/sr

Illumination Color: Infrared

If - Forward Current: 100 mA

Vf - Forward Voltage: 1.6 V

Vr - Reverse Voltage: 5 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C
