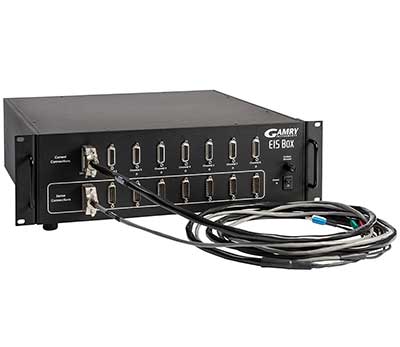

GAMRY EIS Box Eight Channel Electrochemical Impedance Spectroscopy Device (10 uHz – 100 kHz)

Cell Connections: Four

Number of Cells: Up to Eight

Cables: Set of Current and Sense Cables – 3 m standard length

DC Power Input Voltage : 100-240, 50-60 Hz, 2.1A

Connection to computer: Ethernet or USB

EIS Measurement: 10 uHz to 100 kHz

Max AC Amplitude: 3 V or 5 A (EIS Box 5000) // 3 V or 1 A (EIS Box 1010)

Accuracy: See Accuracy Contour Plot

Weight: Approximately 25 lb (10 kg)

Dimensions: 5.25” x 18.875” x 18.875” (13.3 cm H x 41.5 cm W x 45.7cm D)

Power: Max 120W

Mounting: Fits 19” (48.3 cm) standard rack mount 3 U height

Fuses: IEC 127; For 115 VAC, use 6.3 A 250 V; For 230 VAC, use 3.153 A 250 V
