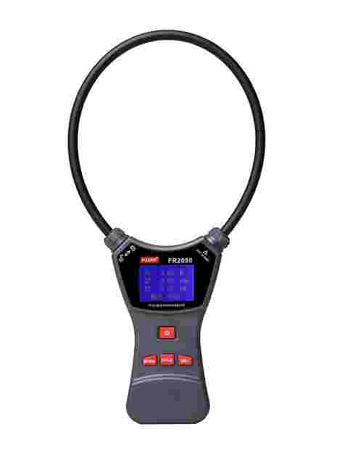

Coil length: 950mm
Coil inner diameter: φ300mm
Function: Three-phase AC voltage, leakage current, current, active power, reactive power, apparent power, total power, phase of current and voltage, phase between voltage, frequency, energy, phase sequence, etc.
Current range: AC0.0A-3000A, Resolution: 0.1A
Voltage range: AC 0.00V - 600V, Resolution: 0.01V
Phase range: 0.0°-360.0°, Resolution: 0.1°
Power factor: 0.3-1.0, Resolution : 0.001
Power range: AC 0.5W-1800KW, Resolution :0.01W
Electric energy range: 0.0000KWh - 180000KWh, Resolution: 0.0001 KWh
Power: DC4.5V 7# Alkaline battery ( 1.5VAAAX3 )
Jaw size: φ300mm
Wire position: The measured wire is at the center of the flexible coil
Sample rate: About 2 times/second
Display mode LCD: 128dotsx64dots; Display area: 43mmx29mm
Instrument size: Host size:W/T/H 151*100*35mm (without coil)
Backlight: Have
Instrument weight: 1 kg(with battery and accessories)
Working current: Backlight turn on 50mA
