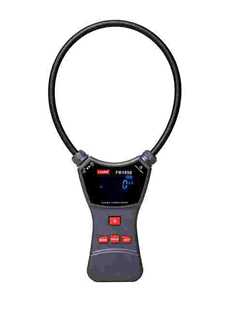

Coil length: 470mm
Coil inner diameter: φ150mm
Current range: 0A-10000A
Current resolution: 0.1A
Function Current test, leakage current test, DC voltage test, AC voltage test
Current accuracy: Accuracy ±2%±5dgt
AC Voltage Range: 0.0V-750V AC; resolution : 0.1V; accuracy : ±1.5%rdg±3dgt
DC Voltage Range: 0.0V- 1000V DC; resolution : 0.1V; accuracy : ±1,5%rdg±5dgt
Sampling rate: 2times/sec
Power: DC4.5V 7# alkaline battery
Backlight: Have
Instrument size: Host size : W/T/H: 151*100*35mm ( not including co il)
LCD size: 45mm*28mm
Coil thickness: Φ8mm
Instrument total weight: 220g
Insulation resistance: Larger than 100M ( 1kV )
Working temperature and humidity: -10°C~40°C below 70%rh
Storage temperature and humidity: -10°C~60°C below 80%rh
