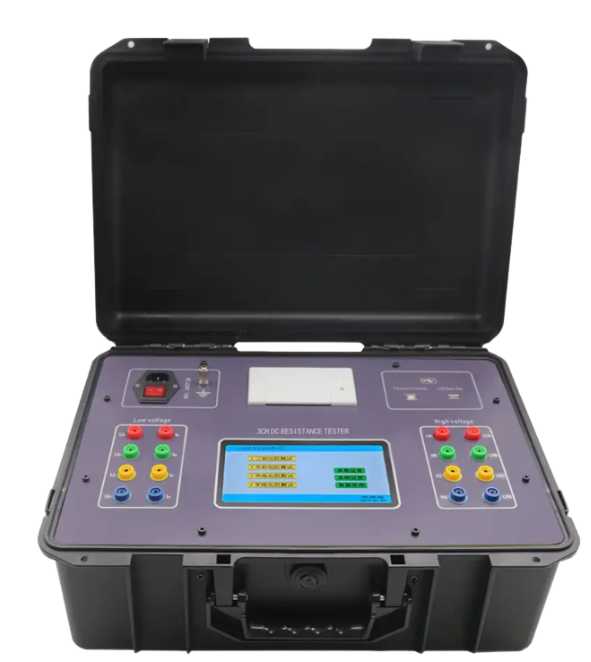

Function: It is mainly used to measure the DC resistance of transformers, transformer winding resistance, grounding network connection continuity, wire resistance of cables, contact resistance of switches, connectors, relays, coils, motors, transformer winding resistances and metal riveting resistance, metal components Connection resistance test, low value resistance test, contact resistance test, etc.
Resistance range: 0.1uΩ – 5000Ω _
power supply: AC 220V 10A (50Hz)
Rated measuring power: 12 00W
Backlight: Adjustable backlight brightness
measurement method: Four-wire test
Short circuit current output: 0.2 A, 0.5 A, 2 A, 5 A, 10 A , 20A ( 6 settings)
Short circuit maximum current: DC 20A ±10%
No-load maximum voltage: DC 27V ± 15 % _
display screen: 7 -inch touch color screen
Overload protection: Have
automatic discharge: Have
U disk interface: Copy and save data
USB interface: With a USB interface , it can be connected to the host computer to view data
Measurement instructions: Measurement progress display, real-time measurement display
Meter size: Length, width and height: 400mm × 300mm ×210mm
Test leads: 8 strips
Print: Built-in thermal printer
Paper Specifications: 57*40mm
data storage: 500 sets of measurement data storage
Data access: Have
overflow display: Over range overflow function: “OL” symbol display
Power consumption: Standby: ≤ 110W / Measurement: ≤ 15 00W
quality: Gauge: 7 kg
Working temperature and humidity: -10℃～40℃; below 80%rh
Storage temperature and humidity: -20℃～60℃; below 70%rh
Insulation resistance: 10MΩ or more (500V between circuit and case)
Pressure resistance: AC 3700V/rms (between circuit and case)
Electromagnetic properties: IEC61010-4-3, radio frequency electromagnetic field≤1V/m
Suitable for safety regulations
IEC61010-1, IEC1010-2-31, IEC61557-1, 5, IEC60529 (IP54), pollution, etc. 2, CAT Ⅲ 300V
