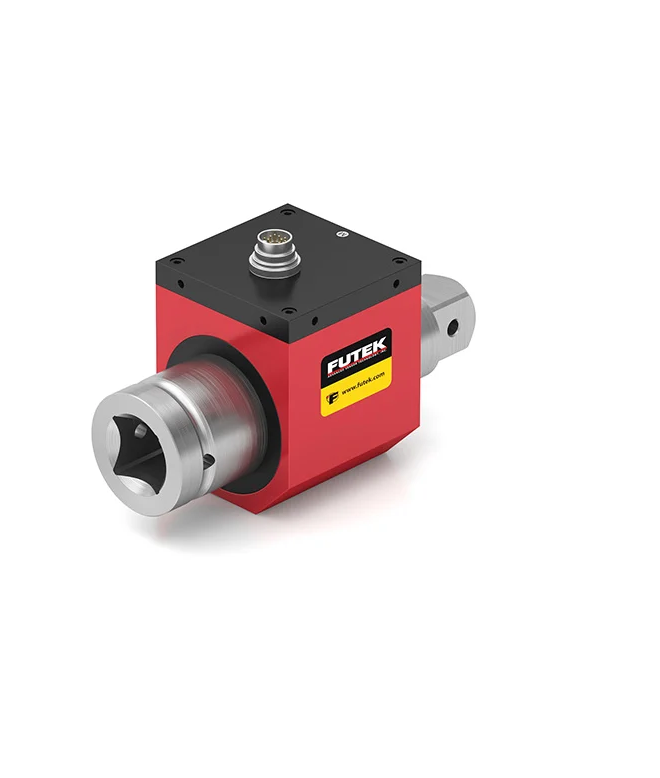

PERFORMANCE
Nonlinearity: ±0.2% of RO
Hysteresis: ±0.1% of RO
Nonrepeatability: ±0.2% of RO
Rotational Speed: 7000 RPM Max
ELECTRICAL
Bandwidth: 3 kHz
Typical Noise: <50 mV p-p
Rated Output (RO): ±5 VDC
Excitation (VDC or VAC): 11 to 26 VDC, 1 Watt
Connection: 12 pin Binder Series #581 (09-0331-90-12)
MECHANICAL
Safe Overload: 150% of RO
Material: Aluminum (Housing) Steel Alloy (Shaft)
IP Rating: IP40
TEMPERATURE
Operating Temperature: –13 to 176°F (–25 to 80°C)
Compensated Temperature: 41 to 122°F (5 to 50°C)
Temperature Shift Zero: ±0.01% of RO/°F (±0.02% of RO/°C)
Temperature Shift Span: ±0.01% of Load/°F (±0.02% of Load/°C)
CALIBRATION
Calibration Test Excitation: 12 VDC
Calibration (standard): Certificate of Conformance
Calibration (available): 5-pt CW & CCW
Shunt Calibration: With sensor fully connected apply 11–26 VDC to Pins A & K to generate 5 VDC nom output
ENCODER
Output: Impulse (TTL)
Pulses per Revolution: 2 × 360
Excitation: 5 VDC, 40 mA max
Angle 1: Leading Pulse
Angle 2: Trailing Pulse (90°)
