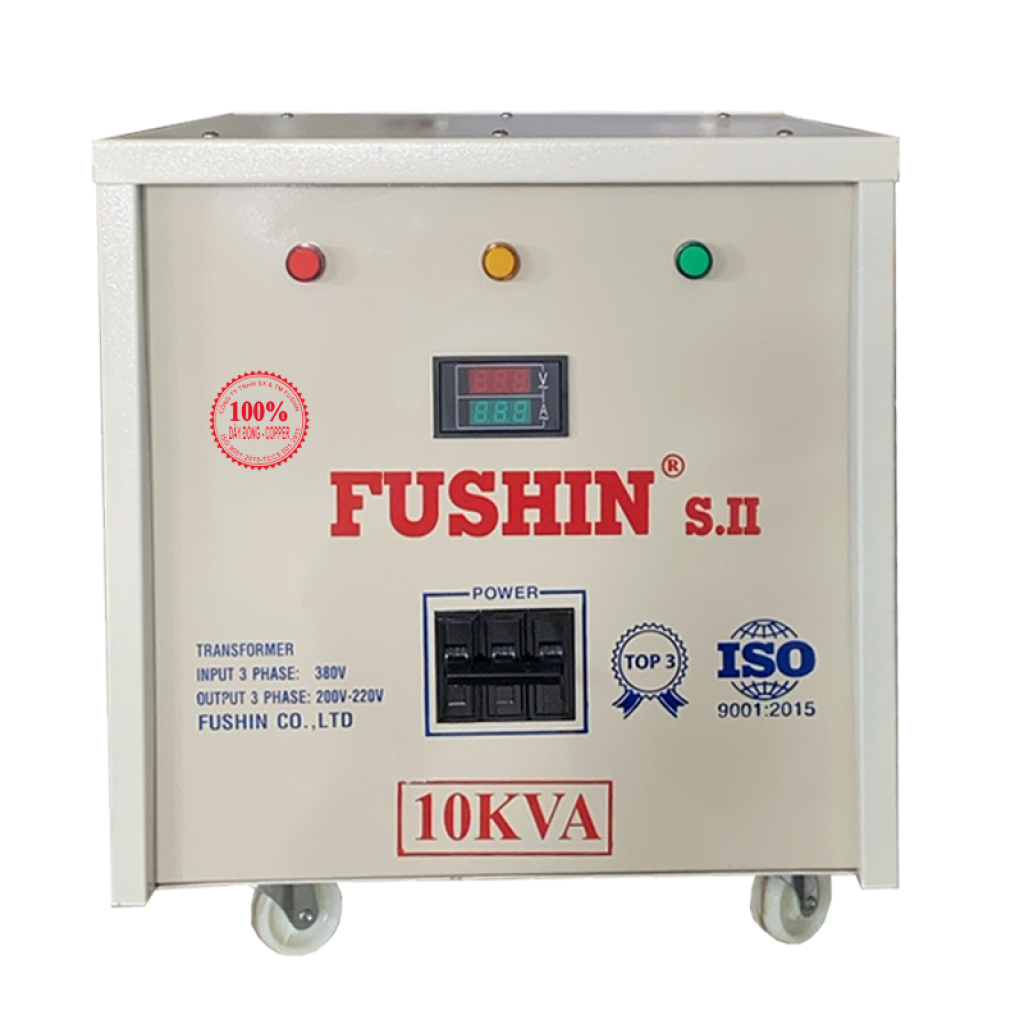

Fushin S.IICC3P-10K Isolated 3-phase transformer (380V (3P), 50Hz /60H)

Input voltage: 380V (3-phase)

Output voltage: 200V-220V (3-phase) ± 2% +N

Frequency: 50Hz / 60Hz

Power capacity: 10KVA - 3 Phase

Operating principle: Isolation transformer

Machine type: Dry-type transformer with protective casing

Insulation class: Class F

Insulation resistance: Greater than 5MΩ at 1000VDC voltage

Dielectric strength: Tested at 2000V voltage for 1 minute without breakdown

Display: Digital Volt-Amp indicator, LED indicator light, Overload circuit breaker, High-quality electrostatic powder-coated casing in off-white color

Ambient temperature: -5 - 65˚C

Efficiency: ≥ 95%.
