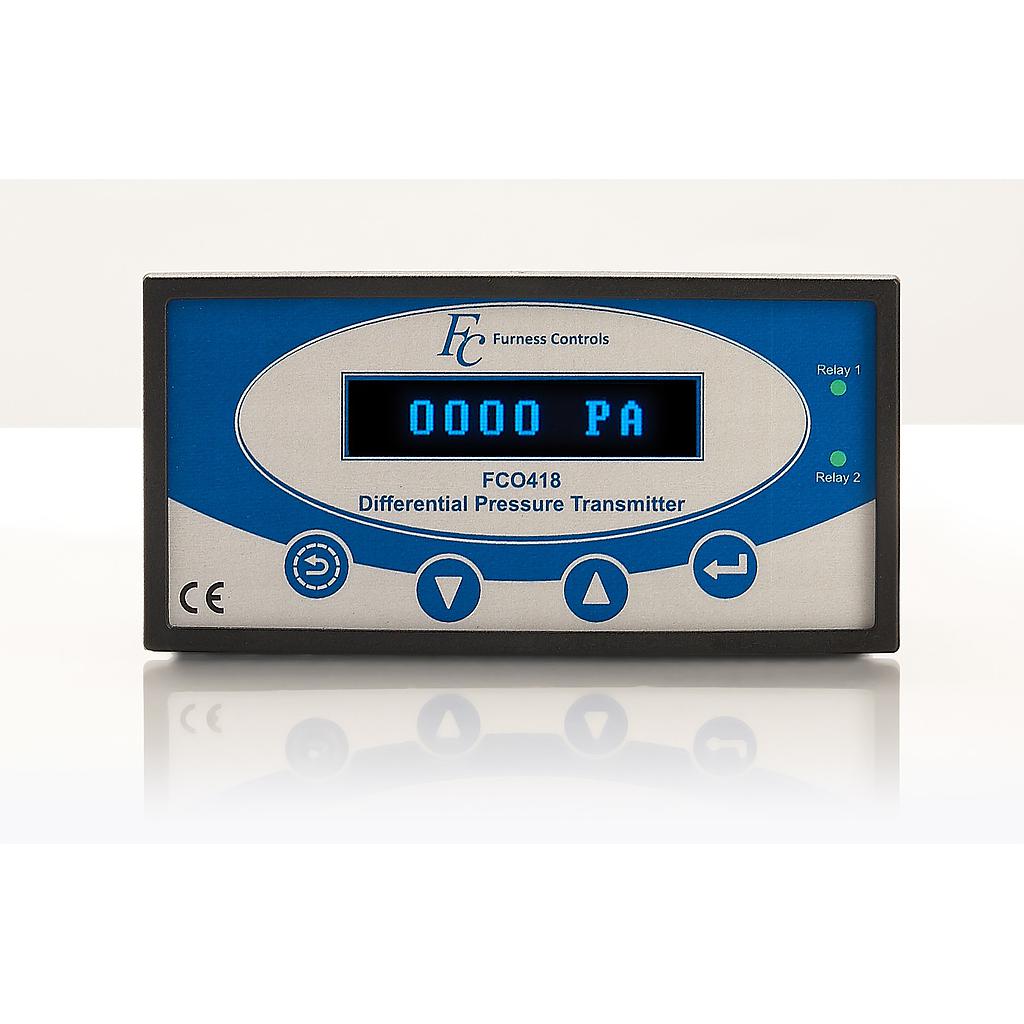

Furness Controls FCO418 Panel Mount Differential Pressure Transmitter (±30kPa, IP50 housing)

Specification

FEATURES

Models/Ranges

Model 1: ±50Pa

Model 2: ±150Pa

Model 3: ±500Pa

Model 4: ±2500Pa

Model 5: ±10kPa

Model 6: ±20kPa

Model 7: ±30kPa

Model 8: ±1bar

Model 9: -1 to +2bar

Model 10: -1 to +6bar

Model 11: -1 to +10bar

Model 12: 0 to +1500mbar abs

Output Options

2 wire 4-20mA (only available for models 1 to 7)

4 wire isolated 4-20mA: (only available for models 1 to 7)

4 wire isolated voltage: 0-1 VDC to 0-10VDC full scale

4 wire isolated voltage: ±1 VDC to ±10 VDC full scale

Display options

Low power LCD

High brightness blue OLED (Requires local 24VDC power)

Keypad: Membrane keypad for easy field configuration

Adjustable: Damping 0.0 to 60.0 seconds

Measurement functions: Linear, square-root, custom linearisation, various selectable engineering units

Trip Level Relays: Optional: 2 relays, rated 2A @ 55Vac, 30Vdc

Zero Control: Optional: Automatic or Remote

Pneumatic Ports

Barbs with locknuts for 6mm OD x 4mm ID for flexible tubing

Options for 4mmOD x 3mm ID tube fittings, ⅛”BSPF or ¼”BSPF

Optional: Process manifold on 54mm Centres

Communications ports:

Micro-USB for instrument configuration (free utility software)

Optional external RS232, RS485 or USB port.

Communication Protocols

Modbus-RTU

Fbus

300 series Legacy

PERFORMANCE

Accuracy @ 20°C

10% to 100% range: < ± (0.25% reading +1 digit)

0 to 10% range: < ± (0.025% range +1 digit)

Span Adjustment

10% to 100% of range

Note: Span can be set anywhere within instruments range.. For span <20% of range, accuracy is reduced to < ± (0.05% range +1 digit)

Long Term Drift : Typically 0.2% per annum

Temperature Coefficients

Zero: < 0.02%/°C

Range: < 0.02%/°C

Working Temperature :-10 to 60°C

Output Resolution

0.3μA for output 4-20mA

0.1mV for outputs 0-1V, ±1V, 0-2V, ±2V

0.35mV for outputs 0-5V, ±5V, 0-10V, ±10V

Overload :

Models 1 to 7: 20 x DP range

Models 8 to 12: 1.5 x range

Static Pressure :

Models 1 to 7: -1 to +10bar Gauge

Models 8 to 12: Do not exceed instrument range

Minimum Step Response :100ms

Output Update :50ms

Power supply

Configuration

2-wire 4 to 20mA

4-wire isolated

Relays, OLED Display or Autozero

Supply Voltage

9 to 40Vdc, 22mA

24Vdc ±10%, 30mA

24Vdc ±10%, 100mA

CONSTRUCTION

Enclosure: IP50 rated panel mount enclosure

Dimensions: W144mm x H72mm x D108mm

Materials in Contact With Media: Copper, brass, nickel, mica & PVC

Media Compatibility: Air and non-corrosive gases max 95% humidity non-condensing

Weight: 0.5kg

Datasheet
