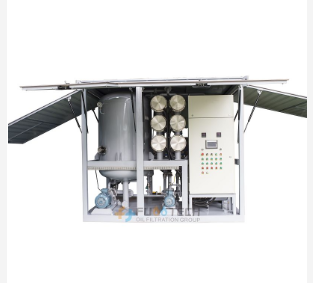

Fuootech ZYD-U-100 Ultra-High Voltage Vacuum Transformer Oil Treatment Plant (6000 L/H)

Flow Rate: 6000 L/H

Ultimate Vacuum Degree: ≤ 5 Pa

Working Vacuum Degree: ≤ 30 Pa

Working Discharge Pressure: ≤ 0.5 MPa

Temperature Control Range: 20 ～ 80℃

Operation Temperature: 40 ~ 65℃

Power Supply: 380V, 50Hz, 3 phases (or as per your requirements)

Ambient Temperature: -25 ～ 55℃

Working Noise: 65 ~ 90 dB（A）

Heating Power(adjusted available): 66 KW

Total Power: 72 KW

Inlet/Outlet: Φ32 mm

Weight: 1200 Kg

Dimension: 2200×1700×2450 mm

Oil Result after Filtration

Moisture (Water Content) ≤ 3 PPM

Gas Content ≤0.01% (Vol)

Impurities Degree (Filtration precision) ≤ 0.5 micron (no free carbon)

Breakdown Voltage (Dielectric Strength) ≥75 KV

Flash Point ≥145℃

Granularity 5 ~ 50μm (in 100ml oil sample) ≤ 500 Nos

Cleanliness ≤NAS 1638 Grade 6
