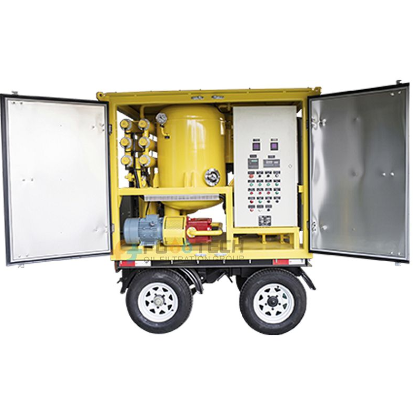

Fuootech ZYD-O-50 Mobile Double-stage Vacuum Transformer Oil Treatment Plant (3000 L/H)

Flow Rate: 3000 L/H

Working Vacuum Degree: -0.08～-0.099 MPa

Working Discharge Pressure: ≤ 0.3 MPa

Temperature Control Range: 20 ～ 80 ℃

Operation Temperature: 40 ~ 70 ℃ (65℃ is best)

Power Supply: 380V, 50Hz, 3 phases (or as per your requirements)

Working hours without Trouble: 4000 Hour

Continuous Working Hours: 150 Hour

Ambient Temperature: -25 ～ 55℃

Working Noise: 65 ~ 90 dB(A)

Heating Power (adjusted available): 36 KW

Total Power: 42 KW

Inlet/Outlet: φ32 mm

Gross Weight (KGS): Machine Part: 830 KGS, Trailer parts: 430 KGS

Dimension L×W×H(mm):achine Part: 1710×1350×2150 mm, Trailer parts: 2760×1860×1050 mm

Oil Result after Treatment

Moisture (Water Content): ≤ 3 ~ 5 PPM

Gas Content: ≤0.01% (Vol)

Impurities Degree (Filtration precision): ≤ 1 micron (no free carbon)

Breakdown Voltage (Dielectric Strength): ≥70 ~ 80 KV

Flash Point: ≥145℃

Cleanliness: ≤NAS 1638 Grade 6
