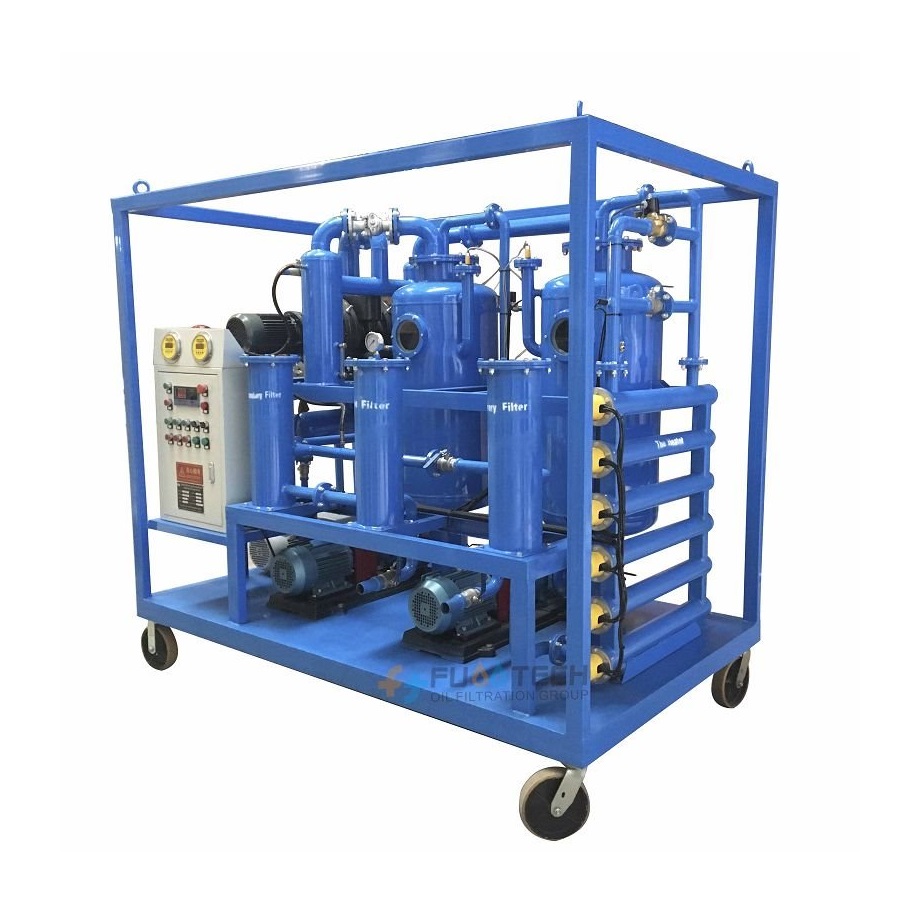

Fuootech ZYD-D-150 Double Vacuum Chambers Type Transformer Oil Filtration Machine (10000 L/H)

Flow Rate: 10000 Liter/hour

Recommended Max. oil volume in one storage tank: 40 Tons

Relative working vacuum degree: -0.08~ -0.099 MPa

Absolute operating vacuum level: ≤ 10 Pa

Working Discharge Pressure: ≤ 0.4 MPa

Temperature Control: 0~100 ℃

Operation Oil Temperature in Treatment: 30 ~ 80℃ (65℃ is best)

Power Supply: AC 3~, 380 V, 50Hz, 4 Wire (or as per your requirements)

Operation Mode: Continuous Operation

Working hours without Trouble: 4000 Hour

Continuous Working Hours: 150 Hour

Ambient Temperature: -25 ～ 55℃

Working Noise: 65 ~ 85 dB（A)

Cooling Method: Air Cooling

Heating Power (adjusted available): 120 KW

Total Power: 136 KW

Inlet/Outle: φ50 mm

Weight: 1470 kg

Dimension (L x W x H): 1910 x 1730 x 2010mm

Moisture (Water Content): ≤ 3 PPM

Gas Content: ≤0.01% (Vol)

Impurities Degree (Filtration precision): ≤ 1 micron (no free carbon)

Breakdown Voltage (Dielectric): ≥75 KV

Flash Point: ≥145℃

Dielectric loss: tgδ(90℃)%≤0.008

Cleanliness: ≤NAS 1638 Grade 6
