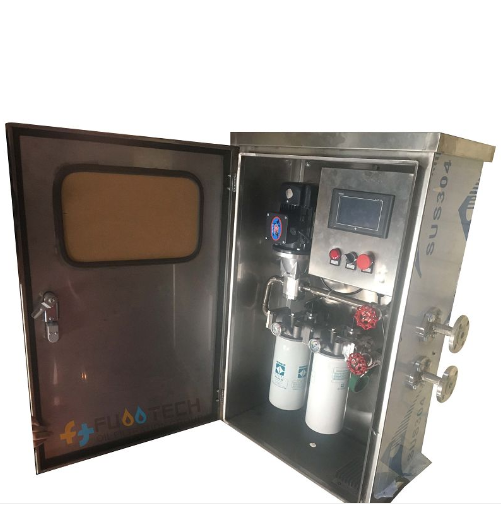

Fuootech FYZ-10 OLTC On Load Tap Changer Transformer Oil Purifier (10 L/m)

Technical Parameter

Nominal flow rate: 10 L/min

Working Pressure: ≤0.5 Mpa

Power Supply: 380VAC, 50Hz, 3 Phase, 4 Wires, or as needed

Medium temperature: -45℃ ~ 115℃

Noise: ≤ 65 dB (A)

Working Hours without trouble: ≥ 9000 Hours

Continuous Working Hours: ≥ 720 Hours

Total electric power: 0.45 KW

Diameter of inlet/Outlet hose: 15/15 DN mm

Dimension L x W x H: 500 x 225 x 750 mm

Weight: 55 KGS

Oil Result after filtration

Filtering Accuracy: ≤ 1 micron

Moisture (Water content): ≤ 20 PPM

Cleanness: ≤ 6 grade NAS 1638
