Franklingrid CGTC3-600-WD Wired Battery Monitoring String Sensor Module (600V)

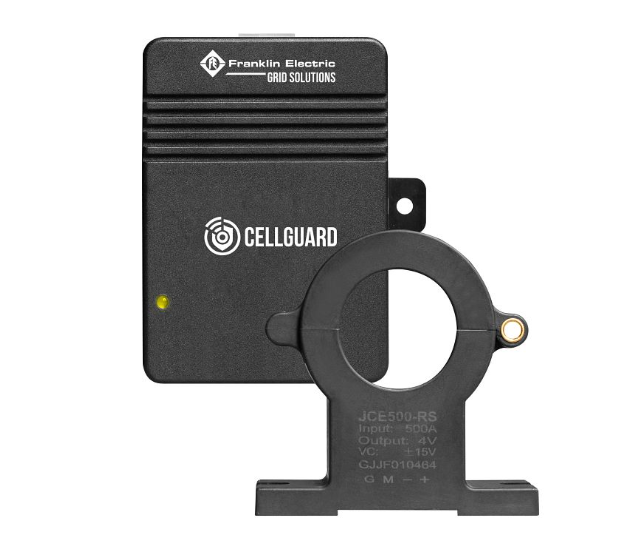

CELLGUARD™ wired battery monitoring string sensor module with ambient temperature sensor, 600V maximum, includes current transducer

Included in the Kit

+ Temperature/Current (TC) Module

+ Current Transducer

+ Interconnect Return Cable, 8 meter, with RJ22 plugs

+ Spare RJ22 plugs (qty 18)

+ Interconnect Cable, 30 cm, with RJ22 plugs

+ Current Transducer Cable with Temperature Sensor

Operating temperature: -10°C to 50°C

Humidity: 5% to 95%

Monitoring Capability:

+ Maximum batteries on a single String: 180

+ Control module string maximum: 6

+ Control module battery maximum: 360

Battery types: 1.2V, 2V, 6V, 12V (capacity less than 3000AH)

Insulation: 2000 VAC

Weight (String Sensor): 80 g

Controller Module Communication Interfaces

+ Serial Comm. Port: RS485 Modbus/RTU

+ RJ45 Ethernet Comm. Port: SNMP, Modbus/TCP

+ RJ22 Module Comm. Port: COM1-COM3 UART

Power Requirements:

String sensor: 10.8 to 13.8VDC, 2W, power from control module
