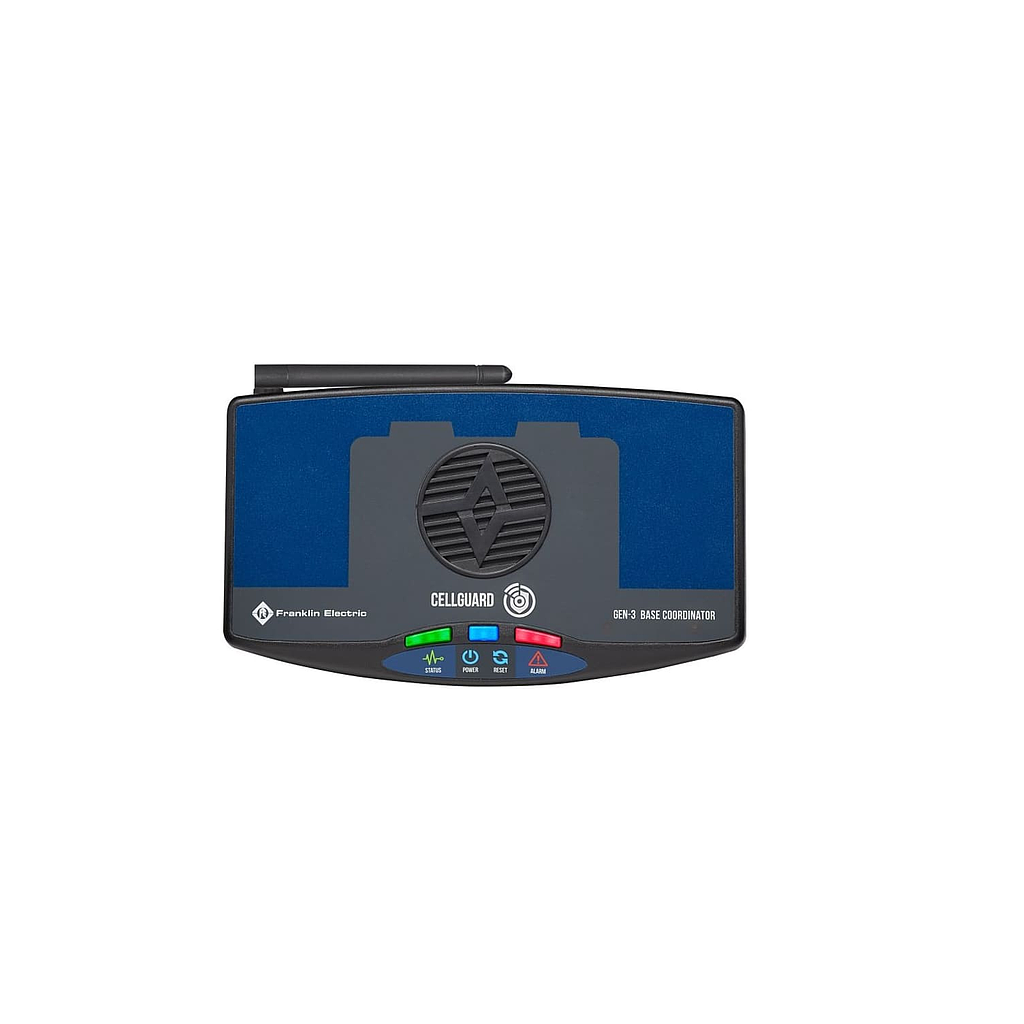

Franklingrid CGBC-350 Wireless Battery Monitoring System

Base Coordinator Unit String Maximum: 16

Maximum Batteries on a Single String: 300

Base Coordinator Unit Battery Maximum: 600

Battery Voltage Test Interval Range: 1 – 24 hrs

Battery Conductance Test Interval Range: 1 – 30 days

Power Input: 9-12VDC @ 800mA

Operating Temperature: 0°C - 65°C

Storage Temperature: -10°C - 80°C

Processor: Quad Core @ 1250MHz

RAM: 1Gb SDRAM @ 400Mhz

Storage: 4GB micro SD card

USB Type A: 2.0

USB Type B: 2.0

UART: Baud Rate: 57.6Kbps; Data Bits: 8; Parity Bit: None; Stop Bit: 1

Ethernet: RJ45; 10/100Mbps; Auto-Negotiate; 802.3 Compliant

Analog Alarm Input: 0.2-10 V differential

Binary Alarm Input: Dry Contact

Major/Minor Alarm Output: Form C Relay 110 VDC 125 VAC max

Wireless RF Radio Band: 802.15.4 compliant; 2.4 GHz @ 8mW (6.3dBm)

Communication Protocols: Modbus, SNMPv3, and MQTTS

Regulatory Compliance: FCC, CE, RoHS, IEEE

Physical Dimensions: L:7.80in, W:4.47in, H:1.44in
