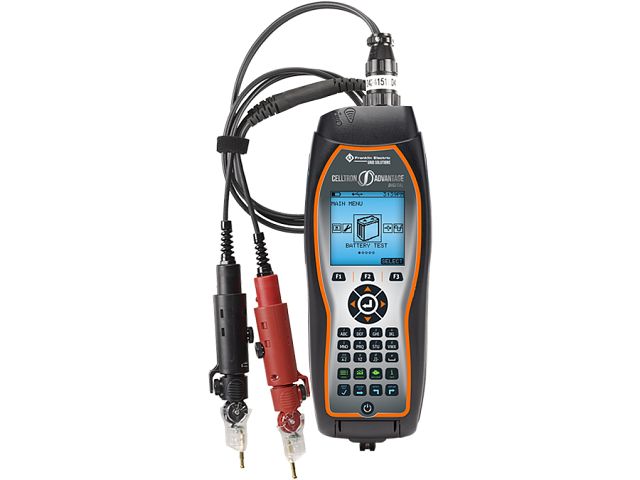

Franklingrid CADD-5000 Digital Battery Tester (0.8 - 23.5 V; 100 - 19,990 Siemens)

Voltage Range: 0.8 - 23.5 Volts DC

Conductance Range: 100 - 19,990 Siemens (Conductance testing voltage range 1V to 23.3V. Battery should be fully charged for best results.)

Test Data Storage: 50 string locations of 240 test results; Stored internally; Unlimited transfer to USB drive

Accuracy: +/-2% across test range, voltage & conductance

Voltmeter Resolution: 5mV

User Programmable Functions:

+ Preset values for over 250 battery types

+ Low voltage alarm setting

+ Low conductance warning

+ Low conductance failure

+ Test mode (pushbutton/auto start)

Cable Options: Dual contact clamps, Dual contact probes, Custom cables by quotation

Power Requirements: 7.2V, 2300mAh, NiMH; Internal swappable battery & charger

LCD Display:

+ 2.97 in x 2.81 in (75.4 mm x 71.3mm)

+128 x 128 pixels

+ 40 degree viewing angle

+ LED backlight

Keypad: Alpha-numeric; Stainless-steel dome; Polycarbonate overlay; 1,000,000 actuations

Data Transfer: Wifi; USB 2.0 Flash Drive (Type A); USB 2.0 PC Interface (Type B); Half-duplex IrDA protocol for optional printer

Environmental Operating Range: 0 to +104°F (0 to +40°C); 95% relative humidity Non-condensing

Storage Temperature: -4 to 180°F (-20 to 82°C)

Over Voltage Protection: Auto-reset disconnect, Reverse polarity protected

Dimension: 11in x 4in x 3in (279mm x 105mm x 80mm)

Tester Weight: 2.6 lb (1 Kg)

Languages: English, Spanish, German, Polish, Portuguese, Dutch, Russian, French
