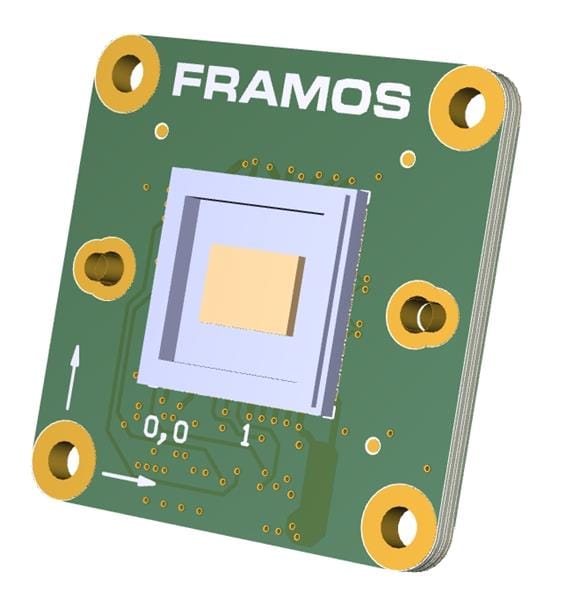

FRAMOS FSM-AR0521C-000-V1B Color Sensor FRAMOS Sensor Module with ON Semiconductor AR0521, CMOS Rolling Shutter, color, 2592 x 1944 pixel, 1/2.5 inch, max. 60 fps, MIPI CSI-2. No mount, compatible with FSA-FT7.
Manufacturer: FRAMOS Model: FSM-AR0521C-000-V1B - Contact
Width: 26.5 mm
Height: 4.41 mm
Length: 26.5 mm
Resolution: 2592 x 1944
Unit Weight: 20 g
Optical Format: 1/2.5 in
Pixel Size - W x H: 2.2 um x 2.2 um
Operating Supply Voltage: 1.2 V, 1.8 V, 2.7 V
Number of frames per second: 60 fps
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 30 C
