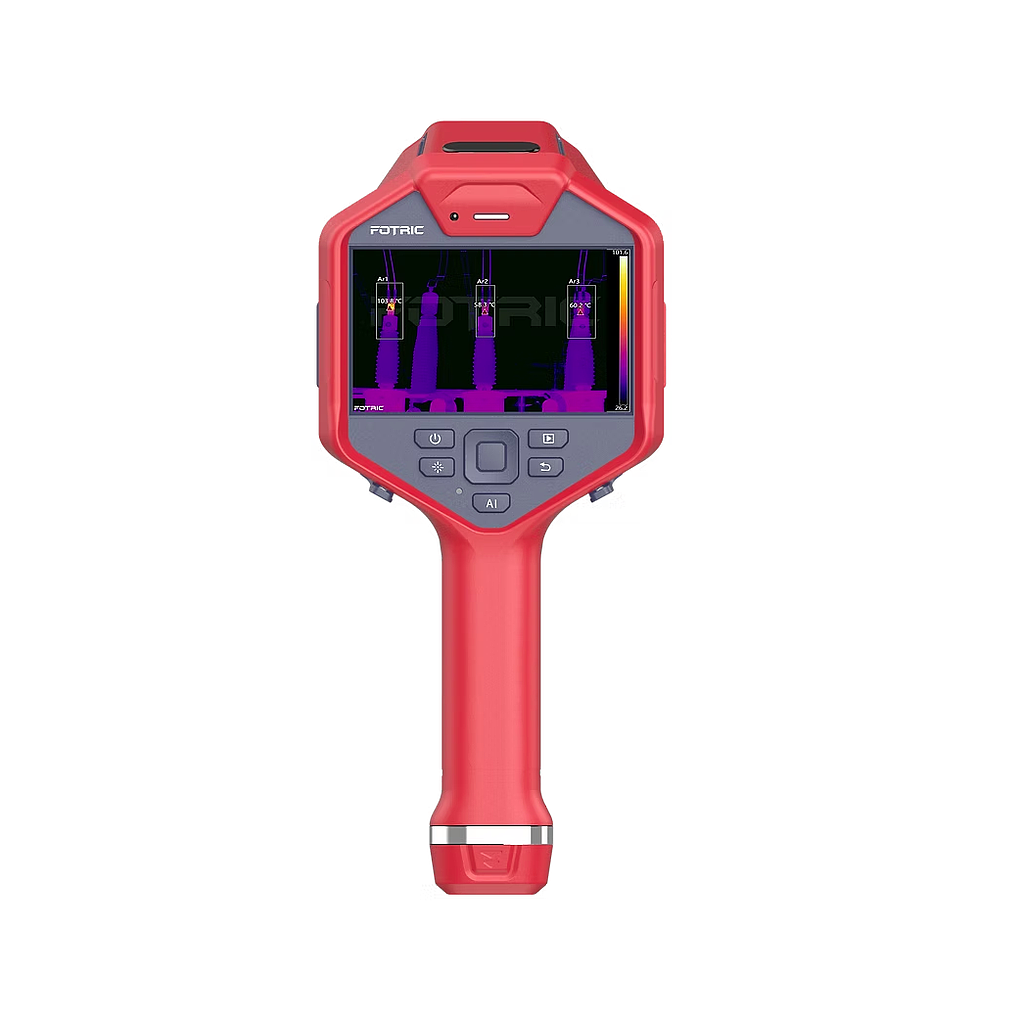

FOTRIC V5 Thermal Camera (< 0.04°C (40mk)@30°C; 384x288; 25° x 19°; -20~1550°C; Manual focus)

Infrared Resolution: 384x288

Super Resolution: 768 x 576

Thermal Sensitivity(NETD): < 0.04°C (40mk)@30°C (86 °F )

Spectral Range: 8-14μm

Image Frame Rate: 30Hz

IR Detector Type: Uncooled infrared focal plane detector

Detector Pitch: 17μm

Field of View (FOV): 25° x 19°

Spatial Resolution (IFOV): 1.14 mrad

Focal Length (mm): 13.7

Minimum Imaging Distance: 0.1m

Focus Mode: TurboFocus® system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus

Digital Zoom: 1-10x, continuous

Unique Features: NaviPdM®, T-DEF®, IREdge, T-TWB®

Temperature Range:

-20°C ~ 120°C (-4 °F to 248 °F )

0°C ~ 700°C (32 °F to 1292 °F )

300°C ~ 1550°C (572 °F to 2822 °F

ROI Spot: 16 spot markers

ROI Area: 12 (rectangle or circle)

ROI Line: 8 measurement lines

Accuracy: ± 2°C (3.6 °F ) or ± 2 %, whichever is greater, (ambient temp at 77 °F )

Display Screen: 5 inch touch screen (1280 x 720)

Image Mode: Thermal image, Digital Camera, Picture in Picture and T-DEF®

Palettes: 16 standard palettes: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism.

Digital Camera: 13MP industrial grade camera

Storage Card: Micro SD card, 128G, expandable up to 1TB

Capture Mode: Single frame / Video recording / Time-lapse

Voice Annotation Length: 200s

Battery Type: Rechargeable Li-ion, 7.4V, 3500mAh

Battery Operating Time: ≥ 4 hours per battery

Batter Charging Time: 2.5 hours to 90% full charge

Battery Charging System: Two-bay battery charger with LED display (12V, 3A)

Operation Temperature: -20°C (-4 °F ) to 50°C (122 °F )

Storage Temperature: -40°C (-40 °F ) to 70°C (158 °F ) (without battery)

Relative Humidity (Operation and Storage): <95%RH

Dimensions (mm): 312.8 x 123.3 x 139.2

Weight (include battery): < 1.0kg (lens not included)
