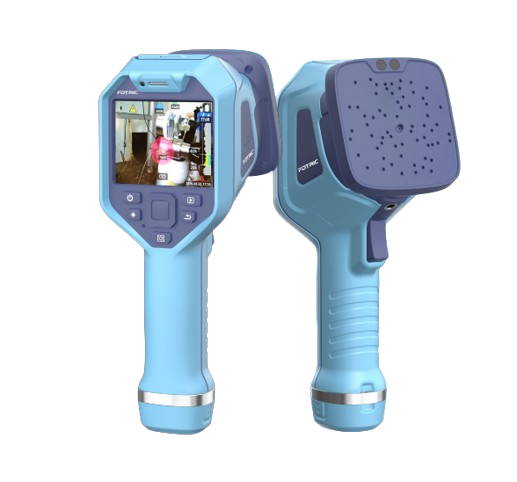

FOTRIC TD2 Kit Acoustic Imaging Camera (66° × 52°; 2~100kHz)

Size: 243 × 95 × 150 mm

Weight: 770 g

Acoustic Image Focus: Masks surrounding areas and focuses only on the target acoustic image

On-device Analysis: The device is capable of directly analyzing acoustic images

Gray Scale Background: Displays digital camera images in grayscale

Favorites: Supports marking and filtering favorite acoustic images and holographic videos

Battery Type: 3.6V, 5000mAh rechargeable lithium battery, field-replaceable

Microphone Channel: 64 MEMS digital microphones

Acoustic Image Field of View (FOV): 66° × 52°

Sound Sampling Rate: 200kHz

Acoustic Refresh Rate: 25Hz

Operating Distance: 0.3~100m

Frequency Range: 2~100kHz

Detection Mode: Leakage mode: display leakage level on device

Analysis Software: AnalyzIR Professional Acoustic Analysis Software

Display Screen: 3.5-inch IPS LCD touch display, 640 × 480, Gorilla Glass protection

Image Modes: Single-source mode, multi-source mode, hologram mode

Digital Camera: 13MP industrial-grade digital camera

Storage Card: TF card, hot-swappable, up to 1TB

Battery Operating Time: ≥ 4 hours continuous operation

Supported Languages: English, Traditional Chinese, Spanish, Korean, German, Portuguese, Italian, French, Thai, Japanese

Standard Configuration: Acoustic imaging camera; rechargeable battery ×1; power adapter; USB Type-C cable; 32GB TF card; wrist strap; document bag; packaging box
