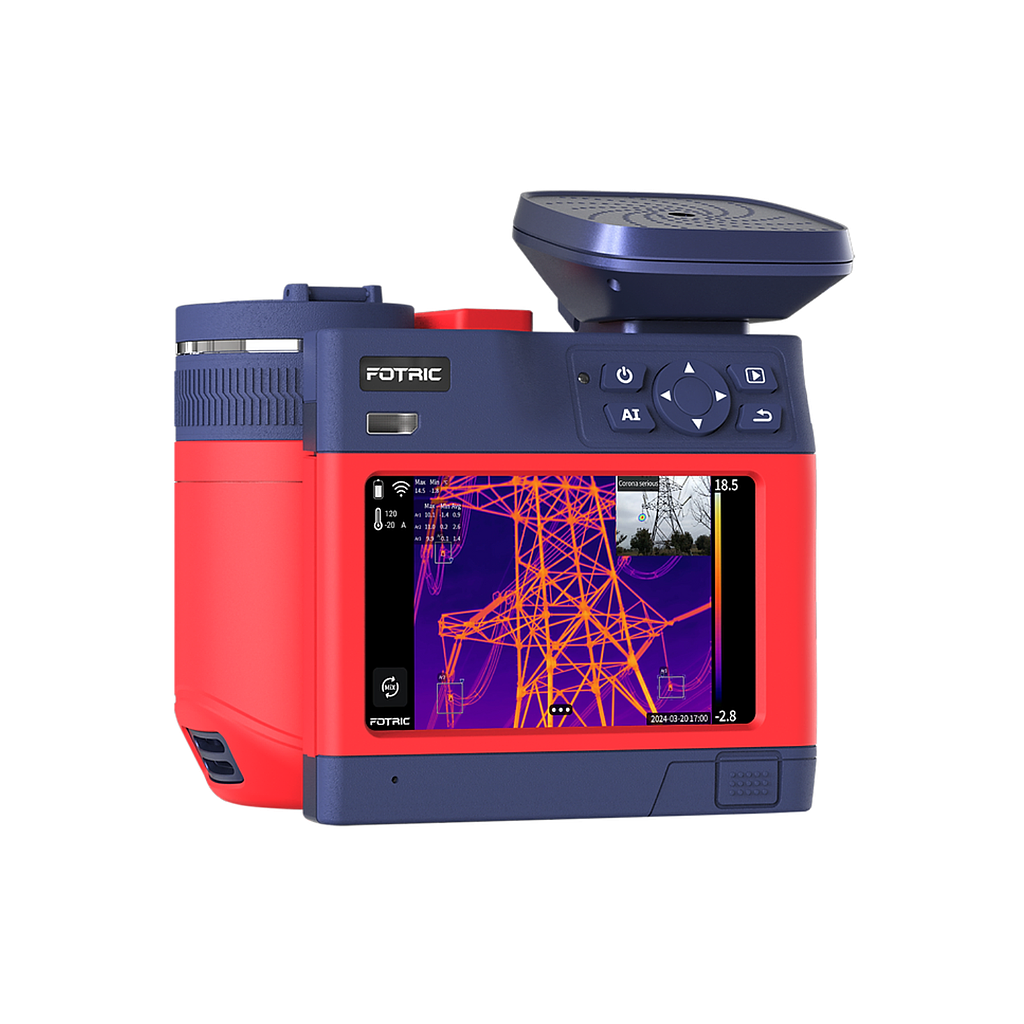

FOTRIC P7MiX AcouTherm Camera (640*480; <30mK@30° C; -20°C - 700°C)

IR Resolution: 640*480

Thermal Sensitivity（NETD): <30mK@30° C

Field of View (FOV): 25° *19°

Focus Mode: Automatic, Manual

Acoustic Image FOV: 66° *52°

Microphone Channels: 162 MEMS digital microphone

Acoustic Working distance: 0.3~100m

Measurement Accuracy: ± 1℃ or ± 1 %, whichever is greater (ambient temp at 25℃ , temperature range 0° C-100° C), ± 2℃ or ± 2 % for other temperature range

Temperature Range: -20 °C to 700°C

Display Screen: 5", 1280*720 pixels, IPS LCD touchscreen display with Gorilla Anti-Explosion screen

Image Mode: Thermal Imaging Display: Thermal\Digital\Picture-in-Picture\T-DEF® Acoustic Imaging Display: Single, Multi, Hologram

Storage Card: SD card, hot-swappable, supports up to 2TB

Battery: 3.6V, 9900mAh rechargeable lithium battery, field replaceable

Battery operation time: Continuous work ≥ 2.5h （depends on the environment and work load）

Weight ( include battery): 1.6kg（without lens）

Enclosure rating: IP40
