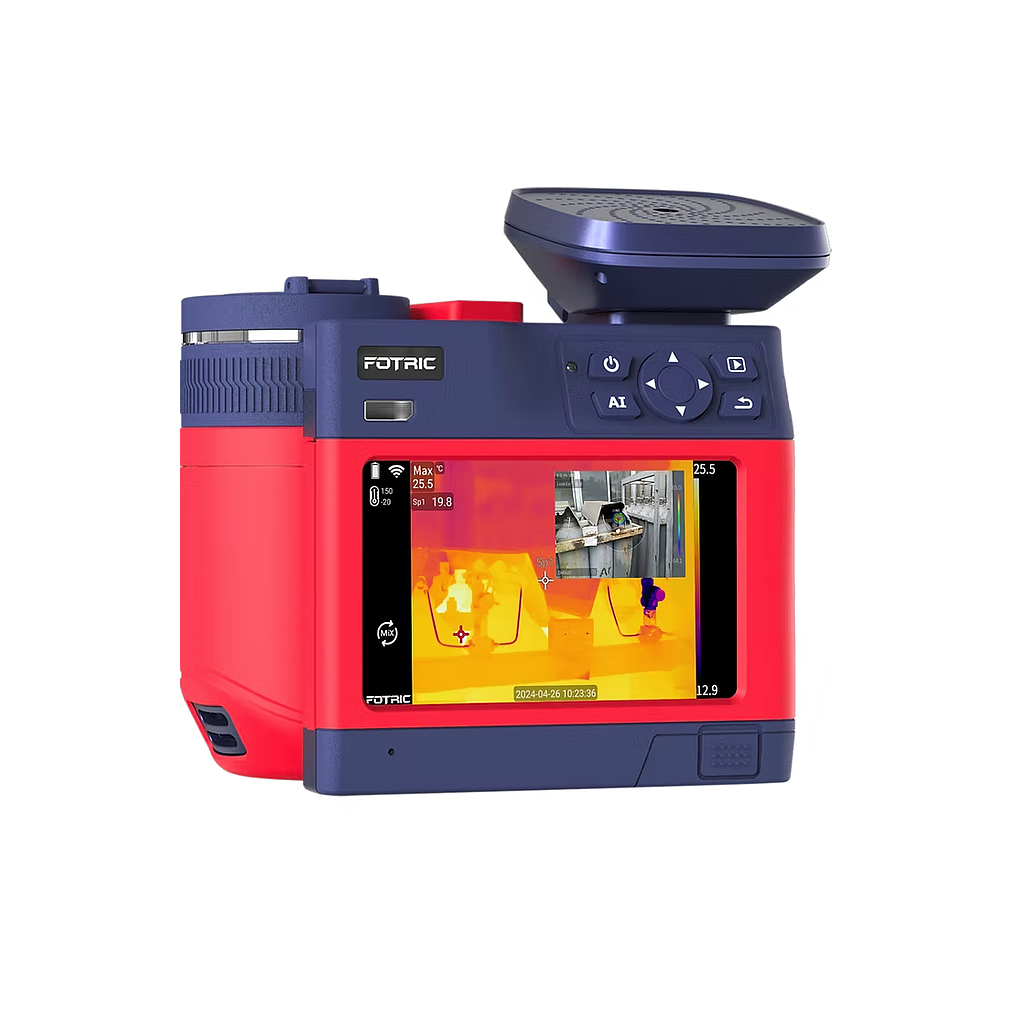

FOTRIC P5MiX Acoutherm Camera (384*288; <40mK@30℃ ; -20~650℃)

IR Resolution: 384*288

Thermal Sensitivity（NETD) :<40mK@30℃ (86 ℉ )

Field of View (FOV): 25° *19°

Focus Mode: TurboFocus® system (thermal contrast AF, laser-assisted AF, continuous AF, touch AF); Manual

Microphone Channels: 140 MEMS digital microphone

Acoustic Image FOV: 66° *52°

Acoustic Working distance: 0.3~100m(1~328ft)

Temperature Range: -20~120℃ (-4~248 ℉ )，0~650℃ (32~1202 ℉ )，Intelligent range

Measurement Accuracy: ± 2℃ /3.6 ℉ or ± 2 %, whichever is greater (ambient temp at 25℃ /77 ℉ )

Display Screen: 5", 1280*720 pixels, IPS LCD touchscreen display with Gorilla Anti-Explosion screen

Image Mode

Thermal Imaging Display: Thermal\Digital\PIP\T-DEF® blend

Acoustic Imaging Display: Single, Multi, Hologram

Storage Card: SD card, hot-swappable, supports up to 1TB

On Device Analysis: Support

Voice Annotation: Record up to 120 seconds of voice to be saved in thermal image, acoustic image, radiometric and holographic video

Text Annotation: Enter text via soft keyboard to save to thermal, acoustic, radiometric and holographic video

Battery: 3.6V, 9900mAh rechargeable lithium battery, field replaceable

Battery operation time :Continuous work ≥ 4h （depends on the environment and workload）

Battery Charging Time: Charge to 90% in 2.5 hours

Weight ( include battery): 1.6kg/3.5lb（without lens）

Enclosure rating: IP54

Calibration Interval: 2 years for thermal camera; 1 year for acoustic camera

Supported Language: English, Spanish, German, Traditional Chinese, Korean, Italian, Portuguese

Standard Configuration: FOTRIC acoutherm camera, Lens, Lens cap, HDMI to HDMI cable, Documents( certificate Charging dock, USB to USB-C cable, Micro of quality, certificate of calibration, warranty card, packing list), Quick start manual, 128G 3 pieces of rechargeable lithium battery, SD card, SD card reader, Power adaptor, Hard carrying case.
