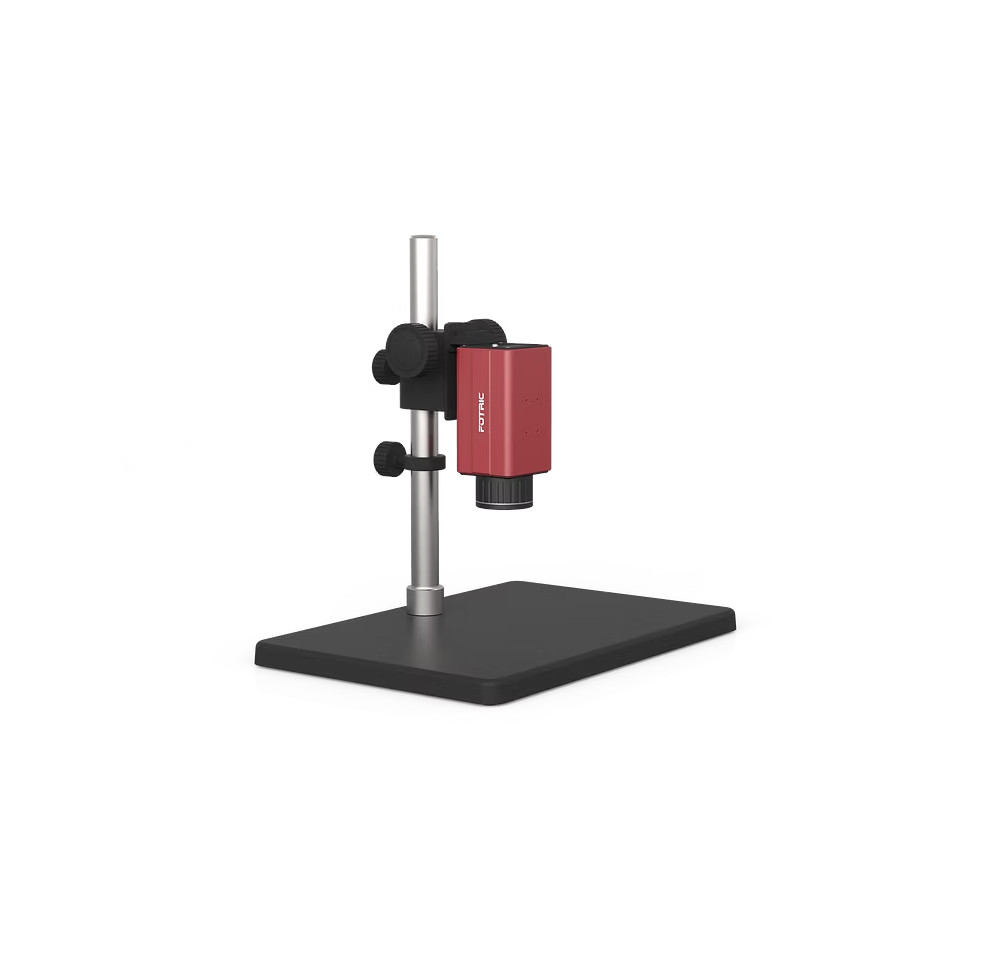

FOTRIC 223Link R&D Thermal Imaging Camera (160 x 120; ＜0.06℃ @30℃, 50mk; -20~350℃; 28° x 21°)

Infrared Resolution: 160 x 120

Thermal Sensitivity (NETD): ＜0.06℃ @30℃, 50mk

FOV: 28° x 21°

Spatial Resolution(IFOV): 3.05mrad

Minimum Imaging Distance: 0.1m

Focal Length: 6mm

Optional Lens: 50° x 38°

Focal Length: 3mm

Image Pixel Size: N/A

Lens to Object Distance: N/A

Infrared Spectral Band: 8μm~14μm

Detector Type: Uncooled infrared focal plane detector

Detector Pitch: 17μm

Imaging Frame Rate: 30Hz

Focus Type: Manual

Complete Temperature Range: -20~350℃

Temperature Range: -20℃ -150℃ ; 0℃ -350℃

Accuracy: ± 2℃ or ± 2 %, whichever is greater（ambient temp between15℃ ~35℃ )

Measurement Parameters: Emissivity; Ambient temperature; Reflected temperature; Relative humidity;

Distance; External optics compensation

Image Display

Palettes: 9 standard palettes and 9 inverted palettes

Image Processing: Non-uniform calibration, digital enhancement

Image Mirroring: Left-right, up-down, centrosymmetric

Video Stream

Compression Standard: H.264

Radiometric Stream: Support 25Hz radiometric stream

Pan-tilt Control: Support Pelco-D protocol

ROIs: 5 points, 10 lines and 10 regions, support Modbus output

Network Connection

Ethernet Type: 10M/100M/1000M adaptive

Cuncurrent Access : ainstream and substream: 10; Radiometric stream: 1

Access Standard :ONVIF

Electrical Connection

Power Interface: Screw-on wire terminal

Network Interface: Screw-on RJ45 with status indicator LED

Alarm Input/Output Interface

1 relay output: Load capacity: 24V, 1.5A

1 optocoupler output: Output capacity: 3.3~24V, maximum output current 35mA

1 optocoupler input: Input capacity: 3.3~24V, input current 5~15mA

Serial Port: RS-485

Power Supply: 12V/24V DC, PoE

Power Consumption: <3W

Physical Parameters

Operating Temperature: 20℃ -65℃

Storage Temperature: -40℃ -70℃

Relative Humidity: ＜ 90%

Dimensions :112mm*68mm*60mm（without lens or base）

Weight: 490g（without lens or base）

Casing Material: Aluminum alloy

Mounting Method: Support UNC 1/4-20 interface for tripod connection from the bottom and the top
