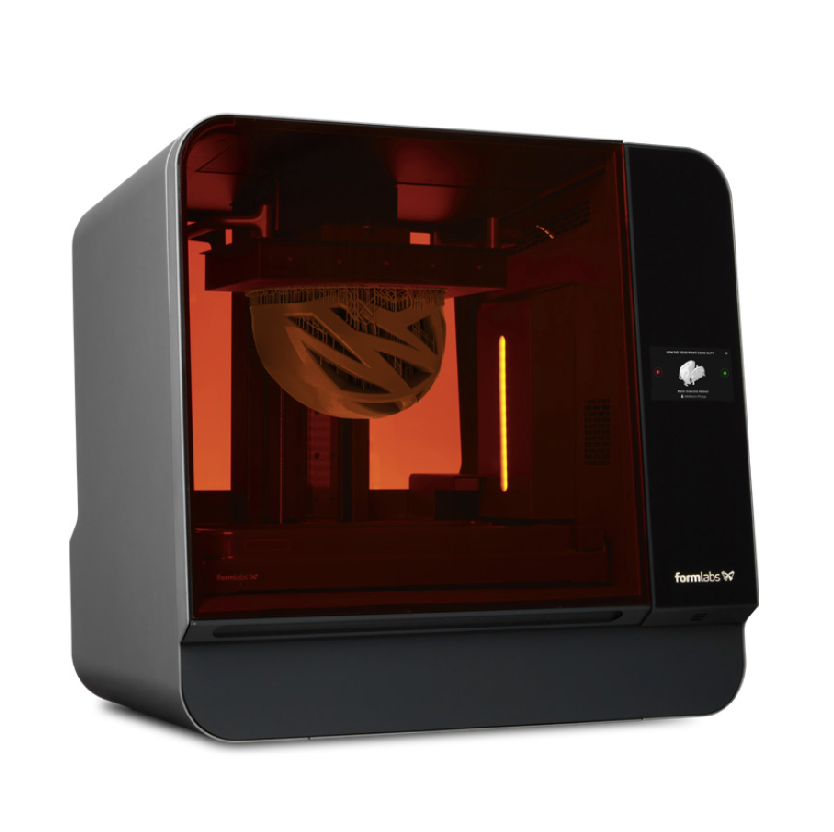

FORMLABS Form 3L Stereolithography 3D Printer (LFS, 25~300microns)

Technology: Low Force Stereolithography (LFS)™

Resin fill system: Automated

Laser spotsize: 85 microns

Laser power: Two 250 mW lasers

Build volume (WxDxH): 33.5x 20x30 cm/13.2x 7.9x11.8 in

Layer thickness: 25~300 microns/ .001 – .012 in

XY resolution: 25 microns/0.001 in

Resin cartridges: 2

Biocompatible materials: No

Printer dimensions (WxDxH): 77×52×74cm/30.3×20.5×29.1in

Weight: 54.4 kg/120 lb

Power requirements: 100–240 VAC, 8.5A MAX, 50/60HZ, 650W

Laser specifications:

2 Light Processing Units

EN 60825-1:2007 certified

Class 1 Laser Product

405 nm wavelength

250 mW power

85 micron (0.0033 in) laser spot

Connectivity: Wi-Fi (2.4, 5 GHz), Ethernet (1000 Mbit), USB 2.0

Printer control: 5.5" interactive touchscreen, 1280x720 resolution

Datasheet
