Main Parameters
Screen: 2.8-inch TFT Color Screen
Backlight: Brightness Adjustable
Power Supply: TYPE-C（5V/1A）
Battery: 3.7V/1500mAh
Languages: 中文、English、Deutsch、Português、にほんご、Español、한국인、Pyccкий
Size: ≈90x142x27.5mm
Product Weight: ≈186g
Oscilloscope Parameters
Real-Time Sampling Rate: 48MSa/s
Analog Bandwidth: 10MHz
Input Impedance: 1MΩ
Coupling Mode: AC/DC
Test Voltage Range:
1:1 Probe: 80Vpp (+40V)
10:1 Probe: 800Vpp (+400V)
Vertical Sensitivity: 10mV/div~10V/div (X1 range)
Vertical Displacement: Adjustable with indication
Time Base Range: 50ns~20s
Trigger Mode: Auto/Normal/Single
Trigger Type: Rising edge, Falling edge
Trigger Level: Adjustable with indication
Waveform Freeze: Yes (HOLD function)
Automatic Measurement: Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle
Signal Generator Parameters
Output Waveform: Supports 13 waveform outputs
Waveform Frequency: 0-50KHz
Square Wave Duty Cycle: 0-100%
Waveform Amplitude: 0.1V-3.0V
Package List:

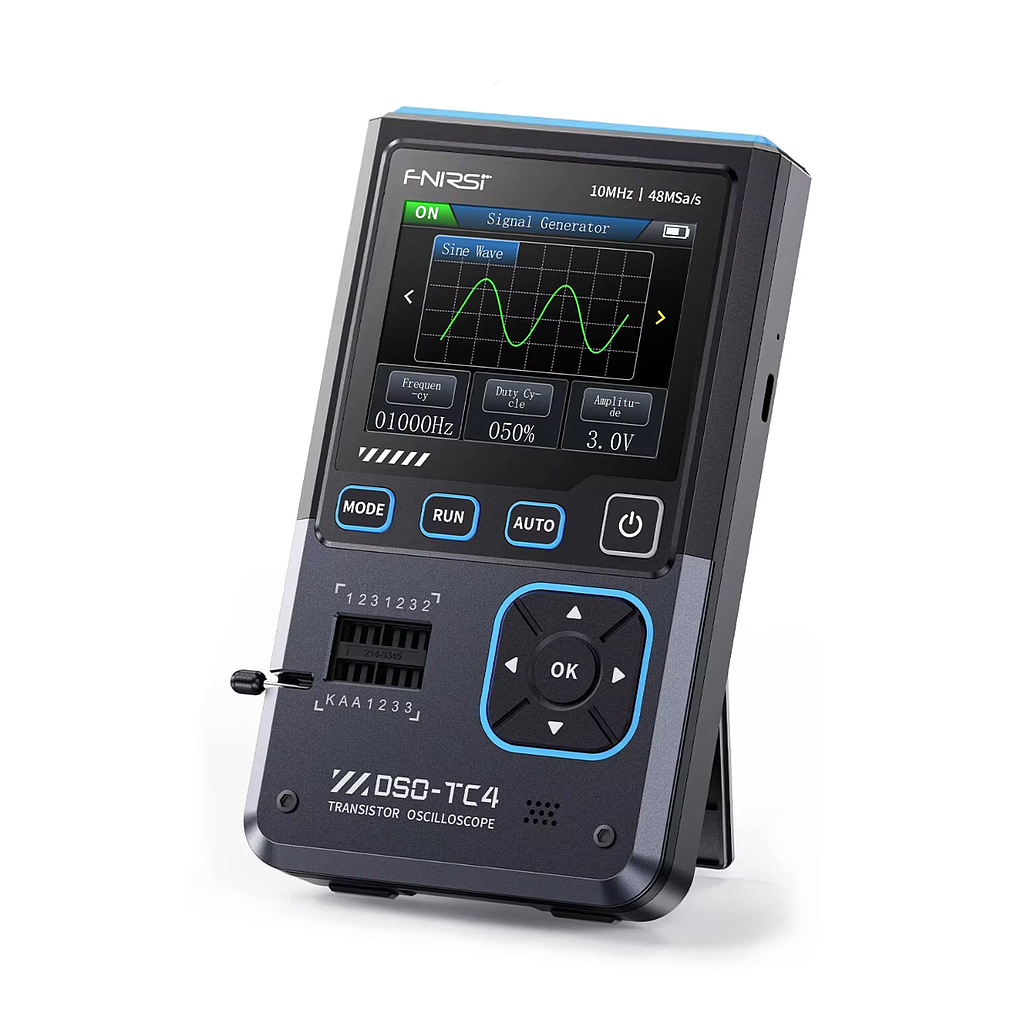

DSO-TC4 Host*1
P6100 High Voltage Probe *1
Adapter *1
Type-C Charging Cable *1
Test Hook *3
Alligator Clip *1
User Manual *1
Packing Box *1
