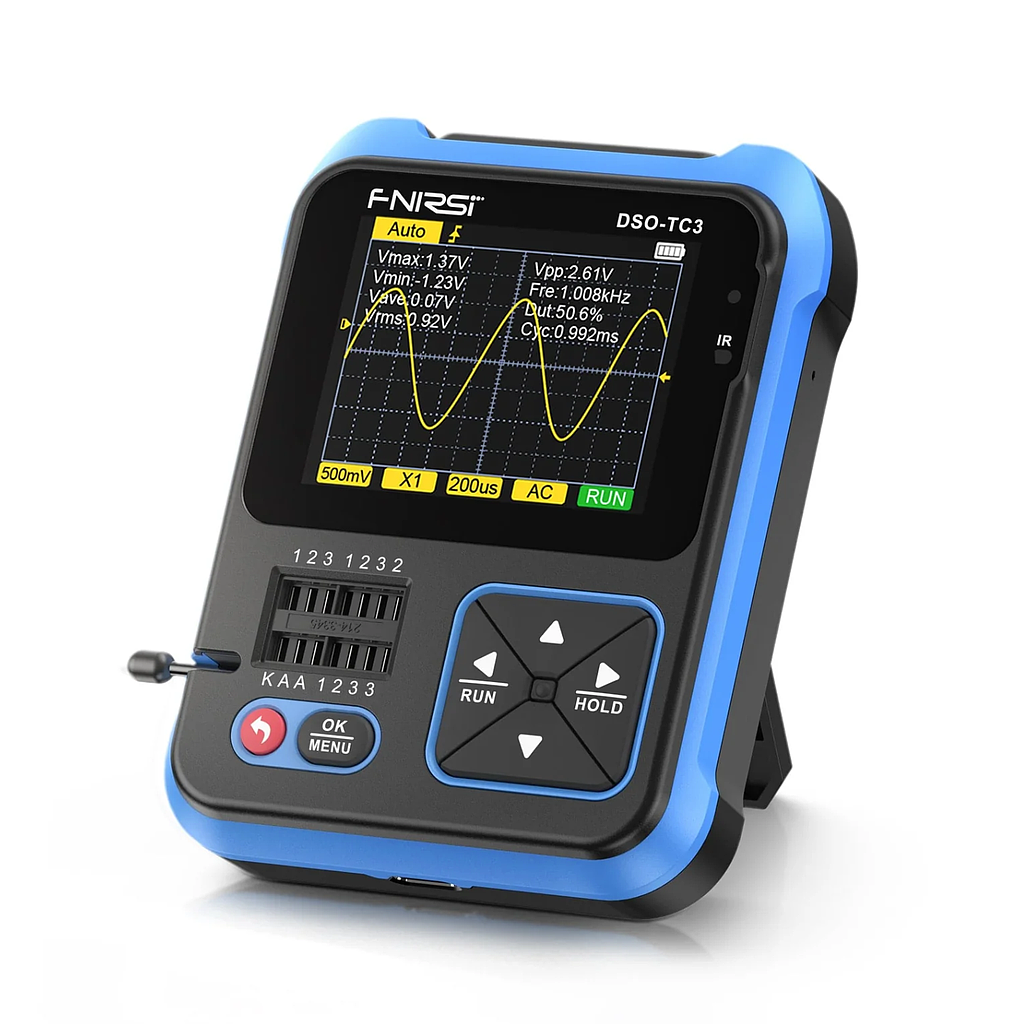

Digital Oscilloscope:
Real-time sample rate: 10MSa/s
Analog Bandwidth: 500KHz
Input resistance: 1MΩ
Coupling method: AC/DC
Test voltage range: 400V
Vertical Sensitivity (x1): 10mV-10V
Horizontal time base range: 1us-10s
Trigger mode: Auto / Normal / Single
Trigger type: Rising edge / Falling edge
Waveform Freeze: Yes
Automatic measurement: Yes
Function Signal Generator:
Sine wave: 1-100KHz/0-3.3V/50%
Square wave: 1-100KHz/3.3V/50%
Pulse wave: 1-100KHz/3.3V/0-100%
Triangle wave: 1-100KHz/0-3.3V/50%
Ramp: 1-100KHz/0-3.3V/0-100%
DC: 0-3.3V
Transistor Tester & Tools:
Triodes: β is greater than 10 and less than 600
Diodes: Forward voltage drop <4.5V
Reglulated diode
0.01~4.5V (1-2-3 test area)
0.01~32V (K-A-A test area)
MOSFET: JFET，IGBT，MOSFET
SCRs TRIAC: Turn-on voltage <5V, gate Pole trigger current <6mA
Capacitor: 25pF~100mF
Resistor: 0.01Ω~50MΩ
Inductor: 10uH~1000uH
Battery: 0.1~4.5V
Input voltage: 0~40V
DS18B20: 0-85℃
DHT1: 0-60℃/5-95%
Infrared remote decoding: NEC protocol infrared code
