Basic Parameters:
Power-on configuration: 5 preset items
Charging requirements: QC18W - 12V/1.5A (Type-C)
Languages: Chinese / English / Russian / Portuguese
Battery specifications: 3.7V, 8000mAh lithium battery
Screen size: 7 inches
Standby time about 3 hours
Screen resolution: 1024 x 600 pixels
Charging time: Startup ≈ 5 Hours
Screen technology: IPS full viewing angle
Total power consumption: 10W
Interaction mode: capacitive touch screen
Heat dissipation: air cooling
Expansion interface: USB data port
Dimensions: 190mm*128mm*37mm
Automatic shutdown: 15 minutes ~ 1 hour / off
Firmware upgrade: support .iso image upgrade
Storage Temperature Range: -20~60℃
Oscilloscope Parameters:
Analog Channels: 2
Analog bandwidth: 350MHz
Rise time: 1nS
Max sampling rate: 1GSPS
Memory depth: 60Kpts
Input impedance: 1MΩ / 14PF
Time base range: 5nS ~ 50S
Roll time base: 50mS ~ 50S
Vertical sensitivity: 2mV ~ 20V(1X)
Vertical range: 16mV ~ 160V(1X)
DC accuracy: ±2%
Time accuracy: ±0.01%
Input coupling: DC / AC
Probe attenuation: 1X / 10X / 100X
Hardware bandwidth limit: 150M / 20M
High resolution mode: 8bit ~ 16bit
Parameter measurements: 12 types
Signal Generator Parameters:
Waveform types: 14 standard functions + captured waveform
Frequency: 0 ~ 50MHz(sine wave only, other waveforms up to 10M/5M/3M)
Amplitude: 0 ~ 5VPP
Offset: -2.5V ~ +2.5V
Duty cycle: 0.1% ~ 99.9%
Frequency resolution: 1Hz
Amplitude resolution: 1mV
Offset resolution: 1mV
Duty cycle resolution: 0.1%
Customizable captured waveform: 500 groups
Frequency Response Analyzer Section:
Excitation signal frequency: 100Hz ~ 50MHz
Excitation signal amplitude: 0 ~ 5VPP
Excitation signal offset: -2.5V ~ +2.5V
Excitation frequency count: 20 ~ 500
Spectrum Analyzer Part:
Conversion method: FFT
FFT length: 4K ~ 32K
Frequency range: 200KHz ~ 350MHz
Level range: -60dBmV ~ +260dBmV
Package List:

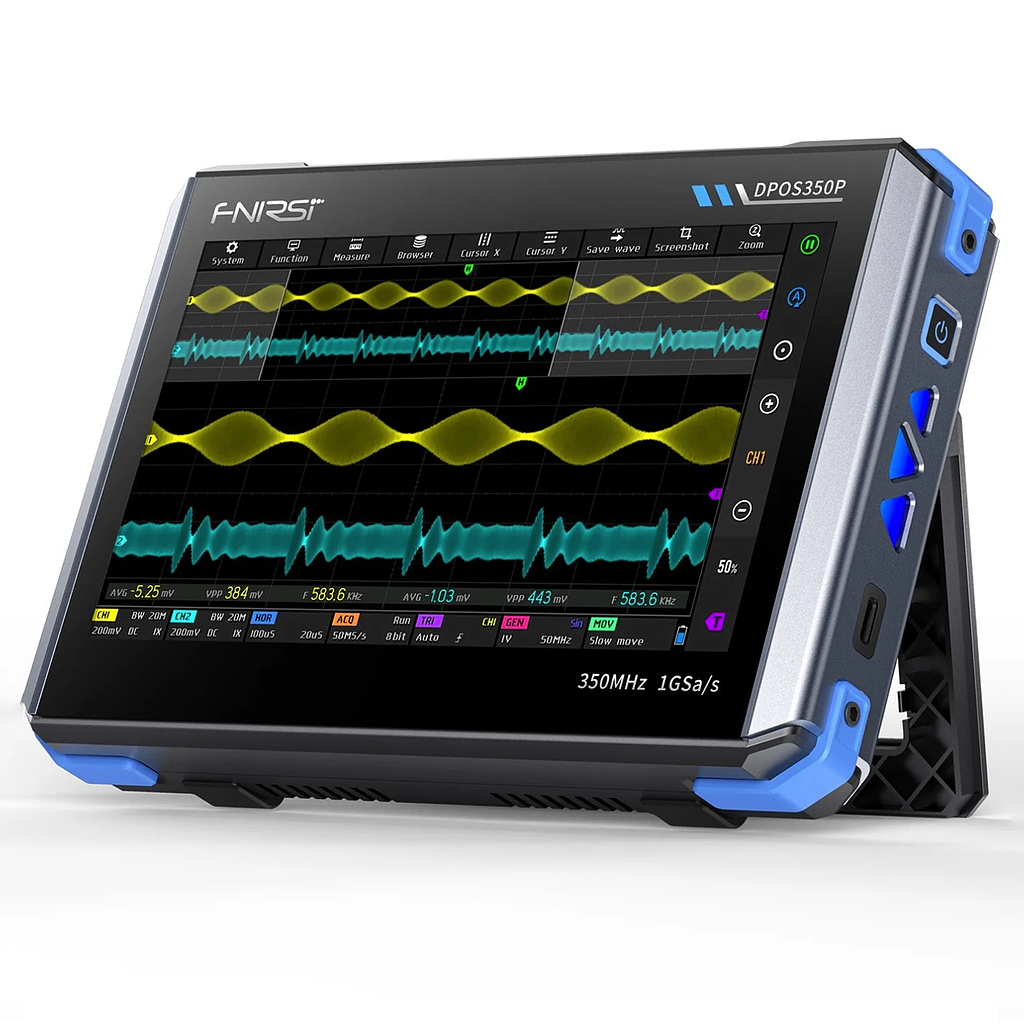

◉ DPOS350P Host *1
◉ QC18W Fast Charger *1 (US or EU Plug)
◉ 350MHz Probe *2
◉ Storage Bag *1
◉ Alligator Clip *1
◉ USB Data Cable *1
◉ User Manual *1
◉ Packing Box *1
