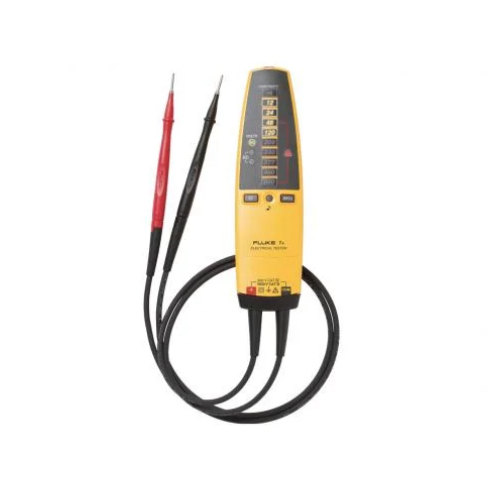

FLUKE T+ Electrical Tester

Temperature: Operating: -10°C to 55°C (14°F to 131°F)

Storage: -30°C to 60°C (-22°F to 140°F)

Relative humidity: 90% 0°C to 30°C (32°F to 86°F)

75% 30°C to 40°C (86°F to 104°F)

45% 40°C to 50°C (104°F to 122°F)

Altitude: Operating: 2,000 m (approx. 6,561.6 ft)

Storage: 10,000 m (approx. 32,808.4 ft)

Battery type/life: AAA (2); 40 hours

AC bandwidth: 45 Hz to 66 Hz

Maximum working voltage: 1000 V AC/DC

Maximum measurable voltage: 600 V AC/DC

Voltage hazard LED: LEDs turn on at voltages > 30 V AC/DC ± 35%

LEDs: LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%

LCD resolution: 0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V

GFCI test current: 100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA

Standard input test current: < 5 mA

Size (H x W x L): 1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )

Weight: 9.9 oz (0.28 kg)
