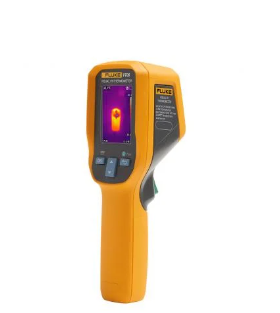

FLUKE FLUKE-VT06/APC Visual IR Thermometer (120×90 pixcel, 7.6 mrad, 400 °C)

Infrared Resolution: 120×90

IR frequency range: 7.5~14 μm(long wave)

Aspect Ratio: 9 Hz

Infrared/NETD Sensitivity: <60 mk

Field of View (H x V): 50° x 37.5°

Spatial resolution: 7.6 mrad

Focus system: Focus free

Minimum focus distance: 0.5 m (19.7 in)

Visible light

Visible Resolution: NA

Visible field of view (H x V): NA

Image display and storage

Photo mode: Thermal photo

Color Range: Ironbow, Blue-Red, High-Contrast, Amber, Hot Metal, Grayscale

Internal memory: >28GB (>100000 images)

File format: JPEG compression format (.jpg)

PIP mode (picture in picture): No

Temperature measurement parameters

Temperature range: -20 °C to 400 °C [-4 °F to 752 °F] (not specified for below -10 °C)

Accuracy (error): ±2°C or 2% @ 23°C±5°C, whichever is greater

Emissivity: Adjustable

Base temperature compensation: Yes

Auto high/low temperature recording: Yes

Central temperature point: Yes

Alerts: High/low temperature warning in full screen

Interfaces and lenses

Real photo lens: No

Flash: No

Infrared lens: Yes

Directional laser: Yes

TYPE-C connector: Yes

TF card port: No

When tripod mount: Yes

Source parameters

Battery: Rechargeable, non-removable Li-ion battery

Battery life, as tested: ≥8 hours, Actual battery life depends on environment and settings

Charging time: <2.5 hours for full charge

Battery charge temperature: 0℃ to 45

Battery charging system: Direct charging, no disassembling

AC adapter: Includes power supply and adapter, Output: 5 VDC, 2 A

Power saving mode: Yes

Temperature

Operating temperature: -10℃ to 50℃

Storage temperature: -40℃ to 70℃

Operating altitude: 2000 m (1.24 mi)

Storage altitude: 12000 m (7.5 mi)

Screen: 6.096 cm (2.4-inch) LCD

English language

Dimensions: 20.4 cm x 6.6 cm x 7.6 cm

Weight: 0.35 kg

Relative humidity: 90%, non-condensing
