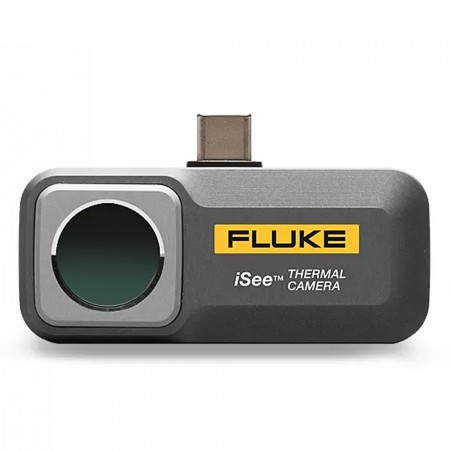

FLUKE FLUKE-TC01A Mobile Thermal Camera (256 x 192; 3.81 mrad; -10°C~550°C (Android* và HarmonyOS))

Type C  Android* and HarmonyOS

IR resolution: 256 x 192

Pixel size: 12 μm

Temperature range: -10 °C to 150 °C, 100°C to 550 °C

Temperature accuracy: ± 2% of rdg or ± 2 °C, whichever is greater (@ 25 °C ± 5 °C ambient temperature)

Temperature measurement distance: 0.25 m to 5 m

Frame rate: 25 Hz

Warm-up time: 1 minute

Focal length: Fixed focal length: 3.2 mm

Shutter mode: Built-in automatic shutter

Thermal sensitivity (NETD): 50 mK

Spectral range: 8 to 14 μm

Field of view (H x V): 56° x 42°

Spatial resolution: 3.81 mrad

General Specifications:

USB Interface: Type-C

Operating temperature: 0 °C to 40 °C

Storage temperature: -30 °C to 60 °C

Operating humidity: 10% to 90% RH, non-condensing

Power consumption: 350 mW (Typical)

Drop test: 1 m

Ingress protection: IEC 60529: IP54

Operating altitude: 2000 m

Storage altitude: 12 000 m

Dimensions (L x W x H）: 59 x 32 x 10 mm

Weight: 22 g
