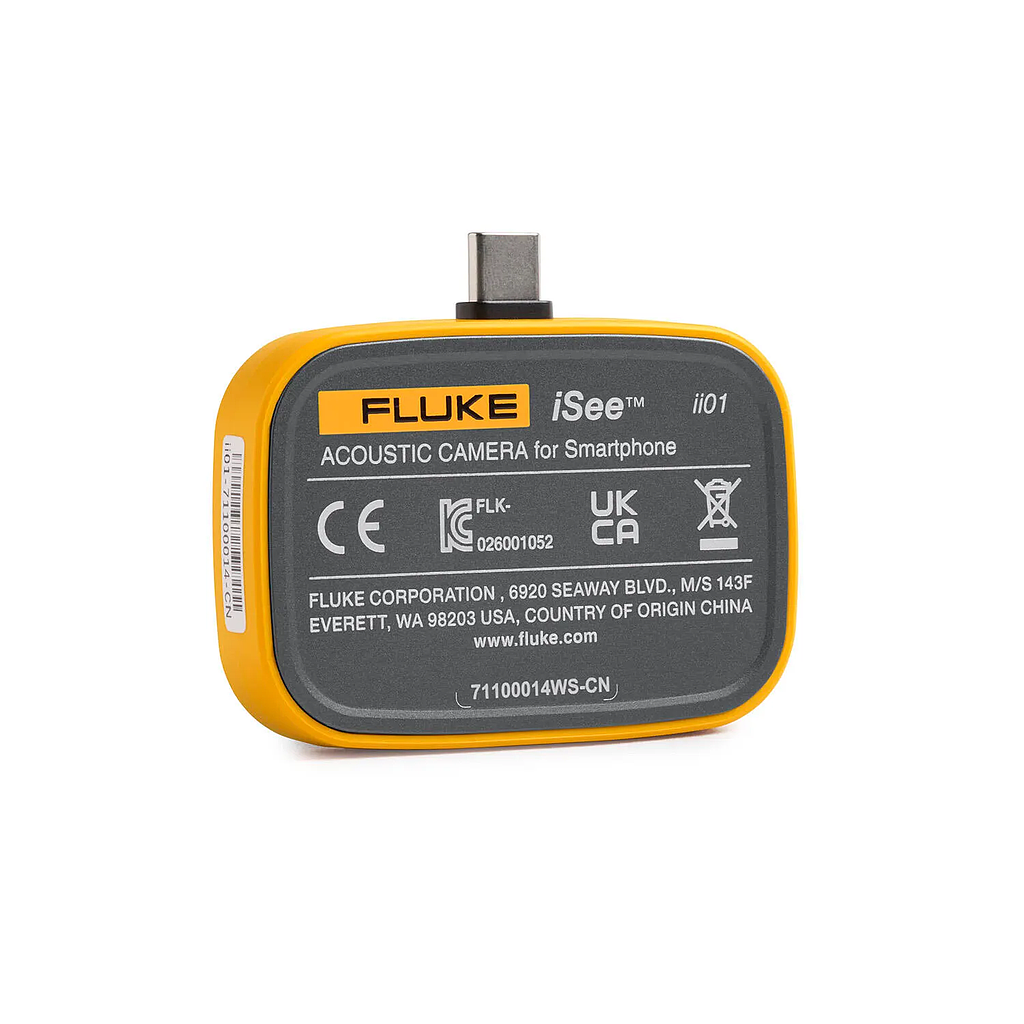

FLUKE FLUKE-II01/EN Acoustic Camera for Smartphone (2kHz ~ 48kHz, 50° × 38°, Android)

Performance Specifications and Features

Microphones: 16 high-precision MEMS sensors

Frequency band: 2kHz to 48kHz

Detection range: 0.50 m to 50 m (based on site conditions)

Field of view (H × V): 50° × 38°

Frame rate: 20 Hz

Sensitivity: -38 dBV

Signal-to-noise ratio: 73 dBA

Visible lens resolution: 2 MP

Acoustic image: SoundMap™ image

Quick leak detection mode:

Leak mode enabled: Frequency band locks at 37.4 kHz to 42.6 kHz

Leak mode disabled: Frequency band selection through manual slider

dB value of the target centerpoint: Yes, it can be enabled or disabled

Focal length: 50 cm to infinity

Image format: JPG, MP4 (up to 5 minutes)

Color palettes: 3: IronRed, Blue-Red and Grayscale

Palette: Color Blending: Yes, 0% ~ 100%

Customized watermark: Image or English character watermarks

General Specifications

Interface: Type-C

OS supported: Android / HarmonyOS

Operating temperature: 0 °C to +40 °C

Storage temperature: -30 °C to +60 °C

Operating humidity: 10% to 90% RH, non-condensing

Operating altitude: Up to 2000 m

Storage altitude: Up to 12000 m

Power consumption: 1.2 W (Typical)

Ingress protection: IEC 60529: IP54

Size (L × W × H): 61 × 50 × 12 mm

Weight: 50 g
