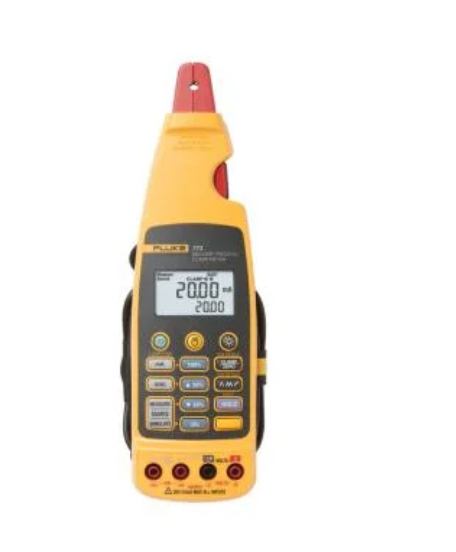

FLUKE FLUKE-773 Clamp Meter (measure 0-100mA/0-30.00 V , source 0- 24.00 mA/ 0-10.00 V DC)

- mA (clamp):

+ 0 to 20.99 mA /0.2% + 2 counts

+ 21.0mA to 100.0 mA /1% + 5 counts

mA (series with test jacks)

+ 0 to 24.00 mA /0.2% + 2 counts

- mA source (Maximum mA Drive:24 mA into 1,000 ohms)

+ 0 to 24.00 mA /0.2% + 2 counts

- mA simulate (Maximum voltage 50 V dc)

+ 0 to 24.00 mA /0.2% + 2 counts

- Voltage source (2 mA maximum drive current)

+ 0 to 10.00 V dc /0.2% + 2counts

- Voltatge Mesaure

+ 0 to 30.00 V dc /0.2% + 2counts

Diameter conductor: 0.177” or 4.5 mm max

IP Rating:IP 40

Size:59 x 38 x 212 mm, (2.32 x 1.5 x 8.35 in.)

Weight 260G, (9.1 oz.)

Included: Soft Carrying Case, Users Manual
