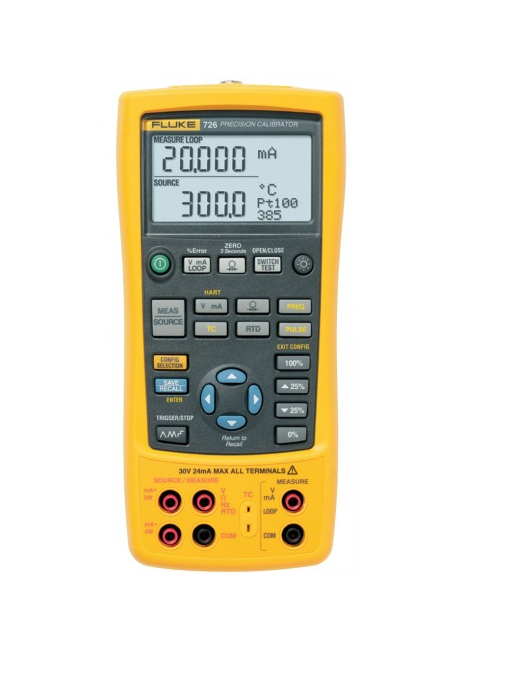

FLUKE FLUKE-726/APAC/EMEA Precision Multifunction Calibrators (Current, voltage, temperature, pressure)

Function Measure or Source

Voltage 0 to 100 mV/ 0.01 % Rdg + 2 LSD

0 to 20 V (source)/ 0.01 % Rdg + 2 LSD

0 to 30 V (measure)/ 0.01 % Rdg + 2 LSD

mA 0 to 24 / 0.01 % Rdg + 2 LSD

mV (TC terminals): -10.00 mV to +75.00 mV/ 0.01 % Rdg + 2 LSD

Resistance: 5 Ω to 4000 Ω/0.015 %

Frequency: 2.0 to 1,000 CPM, 1 to 1100 Hz, 1.0 to 10.0 kHz, 10.0 to 15.0 kHz

Loop Supply: 24 V dc/ 10 %

Thermocouples J, K, T, E, L, N, U, C, BP, XK

Thermocouples B, R, S

RTDs: Cu 10 Ni 120 (672),Pt 100, 200, 500,1000 (385)Pt 100 (3916),Pt 100 (3926) Cu 10

Simultaneous Function:

24.000 mA DC

24.000 mA DC with 24 V loop supply

100.00 mV DC

30.000 V DC measure

Thermocouple J, K, T, E, R, S, B, M, L, U, N, C, BP, XK

RTD Ni120; Pt100 (392); Pt100 (JIS); Pt100, 200, 500, 1000 (385), Cu 10

Pressure (requires Fluke 700PXX Modules) Option

Frequency; Squarewave, 1 CPM to10 kHz;fixed amplitude 5 V p-p

Includes:

One set of AC72 alligator clips

One set of stackable test leads

One set of TL75 testleads

User manuals

NIST- traceable calibration report and data
