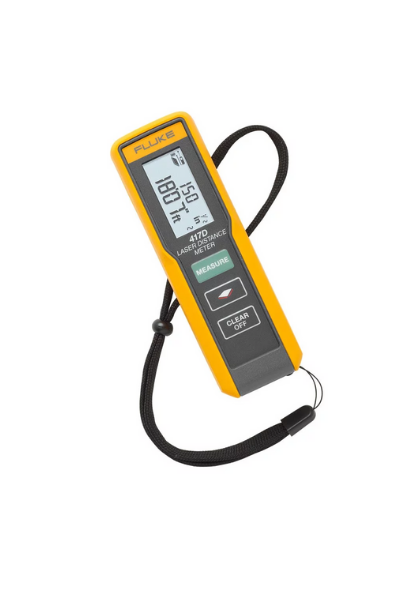

FLUKE FLUKE-417D Laser Distance Meters (0,2-40 m)

Typical range [1]: 0.2-40 m/0.6-131 ft

Typical measuring tolerance* [1]: 2.0 mm ± 1.5 mm/± 0.06 in ***

Maximum measuring tolerance [2]: ± 3.0 mm/0.12 in ***

Accuracy up to 10m (+/-): ± 2 mm

Display: 2 line/1 mm/1/32 in

Display illumination: Yes

Laser point at distance: 6/30/60 mm (10/40/100 m)

Area: Yes

Units setting (smallest units displayed): 0,000m, 0' 00'' 1/32, 0 in 1/32

Auto laser switch off: 90 sec

Auto power switch off: 180 sec

General

Laser class: II

Laser type: 635 nm, <1 mW

Protection class: IP54

Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03: Up to 3,000 measurements

Size (Hx W x D) 11.9 x 3.8 x 2.6 cm

Drop test: 1 meter

Weight (with batteries): 95g (3.35 oz)

Temperature range: Storage: -25 °C to 70 °C (-13 °F to 158 °F)

Operation: -10 °C to 50 °C (14 °F to 122 °F)

Calibration cycle: Not applicable

Maximum relative humidity: 85 % @ 20°F to 120 °F

(-7 °C to 50 °C)

Safety: CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)

EMC: 61326-1:2006
