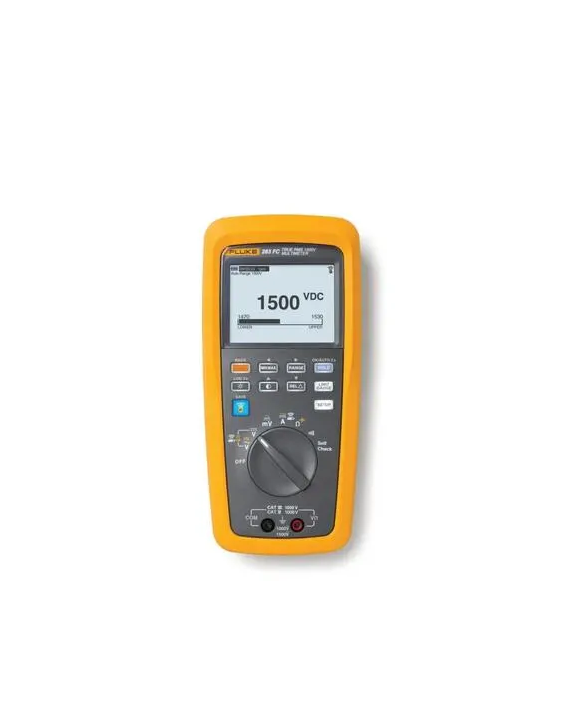

FLUKE FLUKE-283FC/APAC Digital Multimeter (1500 V, 600.0 mV, True-RMS)

AC Voltage

Range / Resolution / Accuracy

6.000 V / 0.001 V / ±(1.0% + 3) (45 Hz to 500 Hz)

60.00 V / 0.01 V / ±(1.0% + 3) (45 Hz to 500 Hz)

600.0 V / 0.1 V / ±(2.0% + 3) (500 Hz to 1 kHz)

1000 V / 1 V / ±(2.0% + 3) (500 Hz to 1 kHz)

DC Voltage

Range / Resolution / Accuracy

6.000 V / 0.001 V / ±(0.09% + 3)

60.00 V / 0.01 V / ±(0.09% + 3)

600.0 V / 0.1 V / ±(0.09% + 3)

1500 V / 1 V / ±(0.15% + 2)

AC mV

Range / Resolution / Accuracy

600.0 mV / 0.1 mV / ±(1.0% + 3) (45 Hz ~ 500 Hz), ±(2.0% + 3) (500 Hz ~ 1000 Hz)

DC mV

Range / Resolution / Accuracy

600.0 mV / 0.1 mV / ±(0.09% + 2)

Continuity Test

Range / Resolution: 600 Ω / 1 Ω

Resistance

Range / Resolution / Accuracy

600.0 Ω / 0.1 Ω / ±(0.5% + 4)

6.000 kΩ / 0.001 kΩ / ±(0.5% + 4)

60.00 kΩ / 0.01 kΩ / ±(0.5% + 4)

600.0 kΩ / 0.1 kΩ / ±(0.5% + 4)

6.000 MΩ / 0.001 MΩ / ±(0.5% + 4)

50.00 MΩ / 0.01 MΩ / ±(1.5% + 4)

Capacitance

Range / Resolution / Accuracy

1000 nF / 1 nF / ±(1.2% + 2)

10.00 μF / 0.01 μF / ±(1.2% + 2)

100.0 μF / 0.1 μF / ±(1.2% + 2)

9999 μF / 1 μF / Typical 10%

Frequency

Range / Resolution / Accuracy

99.99 Hz / 0.01 Hz / ±(0.1% + 2)

999.9 Hz / 0.1 Hz / ±(0.1% + 2)

9.999 kHz / 0.001 kHz / ±(0.1% + 2)

99.99 kHz / 0.01 kHz / ±(0.1% + 2)

Environmental Specifications

Operating Temperature: -10°C to 60°C

Storage Temperature: -30°C to +70°C

Humidity (non-condensing):

0% to 90%, 10°C to 30°C

0% to 75%, 30°C to 40°C

0% to 45%, 40°C to 60°C

General & Mechanical Specifications

Dimensions: 22.5 cm × 10.5 cm × 5.7 cm

Weight: 0.7 kg (1.5 lb)

Battery Life

Standard alkaline battery: > 150 hours, no backlight (3 × AA alkaline)

Standard alkaline battery: > 100 hours when connected to a wireless current clamp (3 × AA alkaline)
