FLUKE FLUKE-1550C FC Insulation Tester (5kV, TΩ, soft case, ir3000 FC Connector)

Test voltage (DC): 250 V - 5000 V

Leakage current measurement: 1 nA to 2 mA / ± (20 % + 2 nA)

Capacitance measurement: 0.01 uF to 20.00 μF / ± (15 % rdg + 0.03 μF)

Timer: 0 to 99 minutes / (1 minute; 1 second)

Live circuit warning: 30 V to 1100 V ac/dc, 50/60 Hz / ±(15 % + 2 V)

Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12

Charger Input (AC): 85 V to 250 V ac 50/60 Hz 20 VA

Dimensions: 170 mm x 242 mm x 330 mm (6.7 in. x 9.5 in. x 13.0 in.)

Weight: 3.6 kg (7.94 lb)

Enclosure sealing: IP40

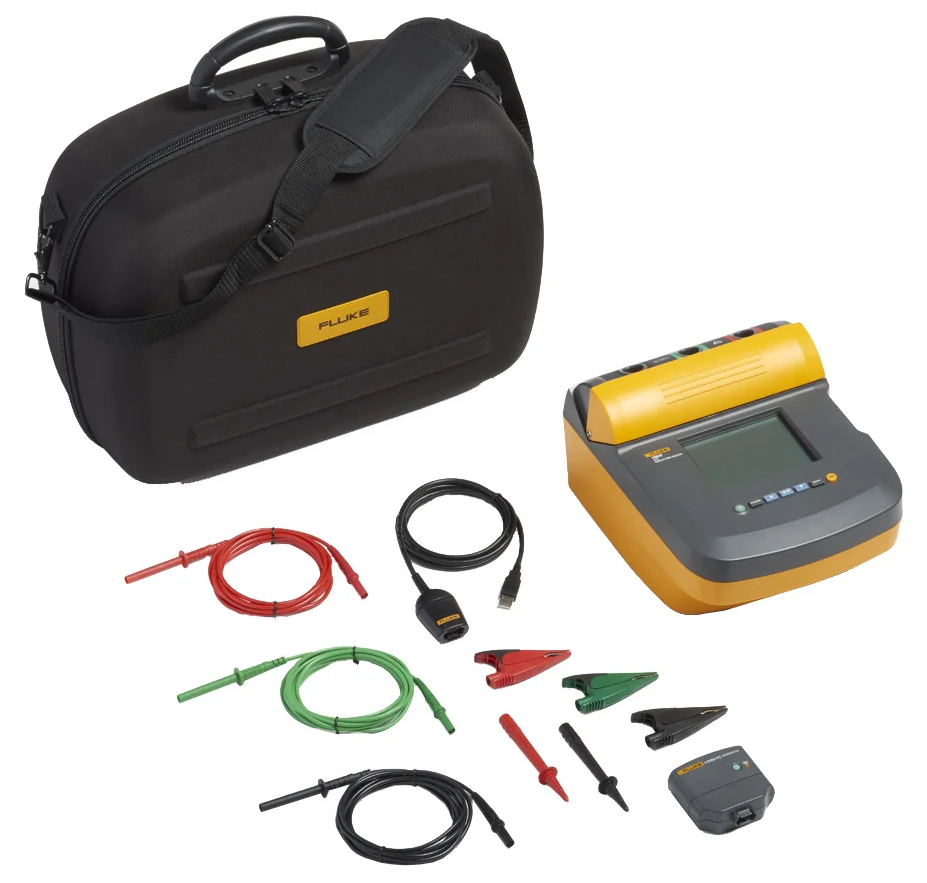

Includes:

Test Cables with Alligator Clips (red, black, green)

Infrared adapter with interface cable

AC Power Cord

Soft Carrying Case

Quick Reference Card

USB-IR Cable Installation Guide

Fluke Connect IR to Wireless Connector

Datasheet

Manual
