Key features
IFOV with standard lens (spatial resolution): 0.93 mRad, D:S 1065:1
Detector resolution: 640 x 480 (307,200 pixels)
SuperResolution: Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image
MultiSharp™ Focus: Yes, focused near and far, throughout the field of view
LaserSharp® Auto Focus: Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter: Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus: Yes
Touchscreen display (capacitive): 5.7 inch (14.4 cm) landscape 640 x 480 LCD
Rugged, ergonomic design: 240 ° rotatable (articulating) lens
Digital zoom: 2x, 4x, and 8x
Pre-calibrated Lenses: wide angle, 2x telephoto, 4x telephoto and 25 micron/macro
Temperature measurement
Temperature measurement range (not calibrated below -10 °C): -20 °C to 1000 °C (-4 °F to 1832 °F)
Accuracy: ±2 °C or 2% (at 25 °C nominal, whichever is greater)
Thermal sensitivity (NETD)*: ≤ 0.05 °C at 30 °C target temp (50 mK)
On-screen emissivity correction: Yes (both value and table)
On-screen reflected background temperature compensation: Yes
On-screen transmission correction: Yes
Live line marker: Yes
Wireless connectivity
To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available)
Fluke Connect® app compatible: Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets optional software: Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location.
Fluke Connect Instant Upload: Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC
Fluke Connect tool compatible: Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported.
Fluke Connect SmartView desktop software: Yes
IR-Fusion® technology
Adds the context of the visible details to your infrared image
AutoBlend™ mode: Continuously variable
Picture-In-Picture (PIP): 100%, 75%, 50%, 25% IR
Built-in digital camera (visible light): 5 MP
Lenses
Standard lens
IFOV (spatial resolution): 0.93 mRad, D:S 1065:1
Field of view: 34 °H x 24 °V
Minimum focus distance: 15 cm (approx. 6 in)
IR-Fusion® technology: Picture-in-picture and full screen
Optional 2x telephoto smart lens
IFOV: 0.33 mRad. D:S is 2145.1
Field of view: 12 °H x 8.5 °V
Minimum focus distance: 45 cm (approx. 18 in)
IR-Fusion® technology: Picture-in-picture and full screen
Optional wide-angle smart lens
IFOV: 1.85 mRad, D:S is 525:1
Field of view: 48 °H x 34 °V
Minimum focus distance: 15 cm (approx. 6 in)
IR-Fusion® technology: Full screen
Level and span
Smooth auto and manual scaling
Touchscreen adjustable level/span: Yes. Span and level can be easily and quickly set by simply touching the screen
Fast auto toggle between manual and auto modes: Yes
Fast auto-rescale in manual mode: Yes
Minimum span (in manual mode): 2.0 °C (3.6 °F)
Minimum span (in auto mode): 3.0 °C (5.4 °F)
Data storage and image capture
Extensive memory options: Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage.
Image file formats: Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files
Memory review: Thumbnail and fullscreen review
Software: Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system
Export file formats with Fluke Connect software: Bitmap (.bmp), GIF, JPEG, PNG, TIFF
Voice annotation: 60 seconds maximum recording time per image; reviewable playback on camera
IR-PhotoNotes™: Yes (5 images)
Advanced text annotation: Yes. Including standard shortcuts as well as user programmable options
Video recording: Standard and radiometric
File formats video: Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3)
Remote display viewing: Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor
Remote control operation: Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app
Auto capture (temperature and interval): Yes
MATLAB® and LabVIEW® tool boxes: Integrate camera data, infrared video and images into these software platforms to support R&D analysis
Battery
Batteries (field-replaceable, rechargeable): Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life: 2-3 hours per battery (Actual life varies depending on settings and usage)
Battery charge time: 2.5 hours to full charge
Battery charging system: Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation: AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving: User selectable sleep and power off modes
Color palettes
Standard palettes: 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes: 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
General specifications
Frame rate: 9 Hz versions
Laser pointer: Yes
LED light (torch): Yes
Color alarms (temperature alarms): High temperature, low temperature, and isotherms (within range)
Center-point temperature measurement: Yes
Spot temperature: Hot and cold spot markers
User-definable spot markers: 3 user-definable spot markers
Center box: Expandable-contractible measurement box with MIN-MAX-AVG temp display
Infrared spectral band: 7.5 μm to 14 μm (long wave)
Operating temperature: -10 °C to +50 °C (14 °F to 122 °F)
Storage temperature: -20 °C to +50 °C (-4 °F to 122 °F)
Relative humidity: 10% to 95% non-condensing
Safety: IEC 61010-1: Overvoltage category II, Pollution Degree 2
Electromagnetic compatibility: IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A
Australian RCM: IEC 61326-1
US FCC: CFR 47, Part 15 Subpart B
Vibration: 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6
Shock: 25 g, IEC 60068-2-29
Drop: 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens
Size (H x W x L): 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)
Weight (battery included): 1.54 kg (3.4 lb)
Enclosure rating: IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Recommended calibration cycle: Two-years (assumes normal operation and normal aging)
Includes:
Thermal imager with standard infrared lens TiX580
AC power supply and battery pack charger (including universal AC adapters)
Two, rugged lithium ion smart battery packs
USB cable
HDMI video cable
Bluetooth headset (where available)
Rugged, hard carrying case
Adjustable neck and hand strap
Available by free download Fluke Connect® SmartView® desktop software and users manual
Datasheet
Brochure
Manual
Sometimes the infrared images you need to capture are the ones that are almost impossible to take. With a full 180-degree articulating lens and 5.7 inch touchscreen, the Fluke TiX580 Infrared Camera allows thermographers to easily navigate over, under, and around objects to preview and capture images with ease. The cameras are ideal for predictive maintenance, R&D, oil and gas, and utility applications where flexibility and higher resolution are essential.

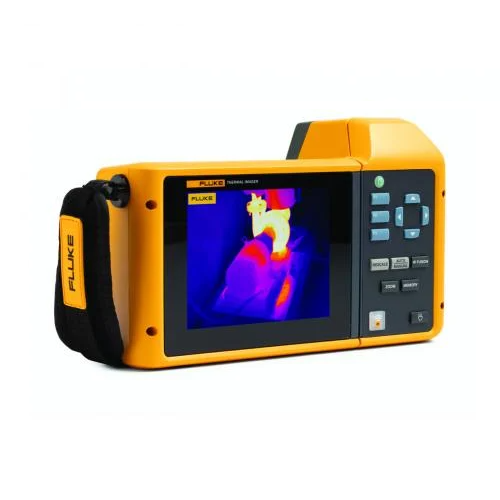

The Fluke TiX580 Infrared Camera features Fluke IR-Fusion® technology with Picture-in-Picture, full visible light, and AutoBlend™ modes for easier identification and reporting of problems. On-board advanced analytics allow users to adjust or enhance images right on the camera without additional software. Also included is Fluke SmartView® software, which provides a suite of advanced tools to view, optimize, annotate, and analyze infrared images, and generate fully customizable professional reports.
The TiX580 features a 5.7 inch responsive LCD touchscreen—the largest in its class with 150 percent more viewing area compared to a 3.5 inch screen. The large screen enables thermographers to quickly identify issues while still in the field as well as easily edit images directly on the camera, eliminating time in the office; time better spent solving the problem.
SuperResolution mode boosts resolution four times so the normal 320 x 240 (76,800 pixel) resolution of the images captured increases to 640 x 480 (307,200 pixels) revealing even greater detail to better identify problems that might have been missed with lower resolution cameras. Optional telephoto and wide-angle lenses add versatility to meet a wide variety of applications.
Out of focus images may produce inaccurate temperature measurements that can be off by as much as 20 degrees making it easy to miss potential problems. To ensure consistently in-focus images, the cameras feature LaserSharp® Auto Focus, exclusive to Fluke, which uses a built-in laser distance meter to pinpoint the target, and accurately calculate and display the distance.
.jpg)
.jpg)
The Fluke TiX580 Infrared Camera is part of the Fluke Connect® system which allows technicians to wirelessly transmit measurement data from their test tools to their smart phones and tablets for secure storage on the cloud and universal team access from the field. Fluke Connect with ShareLive™ video call enables teams to easily share and access infrared inspections on the go and look at trends over time.
| Key features | |
| IFOV with standard lens (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Detector resolution | 640 x 480 (307,200 pixels) |
| SuperResolution | Yes, on camera and in software. Captures and combines 4x the data to create a 1280 x 960 image |
| MultiSharp™ Focus | Yes, focused near and far, throughout the field of view |
| LaserSharp® Auto Focus | Yes, for consistently in-focus images. Every. Single. Time. |
| Laser distance meter | Yes, calculates distance to the target for precisely focused images and displays distance on screen |
| Advanced manual focus | Yes |
| Touchscreen display (capacitive) | 5.7 inch (14.4 cm) landscape 640 x 480 LCD |
| Rugged, ergonomic design | 240 ° rotatable (articulating) lens |
| Digital zoom | 2x, 4x, and 8x |
| Pre-calibrated Lenses | wide angle, 2x telephoto, 4x telephoto and 25 micron/macro |
| Temperature measurement | |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to 1000 °C (-4 °F to 1832 °F) |
| Accuracy | ±2 °C or 2% (at 25 °C nominal, whichever is greater) |
| Thermal sensitivity (NETD)* | ≤ 0.05 °C at 30 °C target temp (50 mK) |
| On-screen emissivity correction | Yes (both value and table) |
| On-screen reflected background temperature compensation | Yes |
| On-screen transmission correction | Yes |
| Live line marker | Yes |
| *Best possible | |
| Wireless connectivity | |
| To PC, iPhone® and iPad® (iOS 4s and later), Android™ 4.3 and up, and WiFi to LAN (where available) | |
| Fluke Connect® app compatible | Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing |
| Fluke Connect Assets optional software | Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location. |
| Fluke Connect Instant Upload | Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect system for viewing on your smartphone or PC |
| Fluke Connect tool compatible | Yes, connects wirelessly to select Fluke Connect enabled tools and displays measurements on camera screen. Five simultaneous connections supported. |
| Fluke Connect SmartView desktop software | Yes |
| IR-Fusion® technology | |
| Adds the context of the visible details to your infrared image | |
| AutoBlend™ mode | Continuously variable |
| Picture-In-Picture (PIP) | 100%, 75%, 50%, 25% IR |
| Built-in digital camera (visible light) | 5 MP |
| Lenses | ||
| Standard lens | IFOV (spatial resolution) | 0.93 mRad, D:S 1065:1 |
| Field of view | 34 °H x 24 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Picture-in-picture and full screen | |
| Optional 2x telephoto smart lens | IFOV | 0.33 mRad. D:S is 2145.1 |
| Field of view | 12 °H x 8.5 °V | |
| Minimum focus distance | 45 cm (approx. 18 in) | |
| IR-Fusion® technology | Picture-in-picture and full screen | |
| Optional wide-angle smart lens | IFOV | 1.85 mRad, D:S is 525:1 |
| Field of view | 48 °H x 34 °V | |
| Minimum focus distance | 15 cm (approx. 6 in) | |
| IR-Fusion® technology | Full screen | |
| Level and span | |
| Smooth auto and manual scaling | |
| Touchscreen adjustable level/span | Yes. Span and level can be easily and quickly set by simply touching the screen |
| Fast auto toggle between manual and auto modes | Yes |
| Fast auto-rescale in manual mode | Yes |
| Minimum span (in manual mode) | 2.0 °C (3.6 °F) |
| Minimum span (in auto mode) | 3.0 °C (5.4 °F) |
| Data storage and image capture | |
| Extensive memory options | Removable 4 GB micro SD memory card, 4 GB internal flash memory, save to USB flash drive capability, upload to Fluke Cloud for permanent storage. |
| Image file formats | Non-radiometric (.bmp, .jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg) files |
| Memory review | Thumbnail and fullscreen review |
| Software | Fluke Connect SmartView software - full analysis and reporting software and Fluke Connect system |
| Export file formats with Fluke Connect software | Bitmap (.bmp), GIF, JPEG, PNG, TIFF |
| Voice annotation | 60 seconds maximum recording time per image; reviewable playback on camera |
| IR-PhotoNotes™ | Yes (5 images) |
| Advanced text annotation | Yes. Including standard shortcuts as well as user programmable options |
| Video recording | Standard and radiometric |
| File formats video | Non-radiometric (MPEG - encoded .AVI) and fully-radiometric (.IS3) |
| Remote display viewing | Yes, see the live stream of the camera display on your PC, smartphone, or TV monitor. Via USB, WiFi hotspot, or WiFi network to Fluke Connect SmartView software on a PC; via WiFi hotspot to the Fluke Connect app on a smartphone; or via HDMI to a TV monitor |
| Remote control operation | Yes, through Fluke Connect SmartView desktop software or Fluke Connect mobile app |
| Auto capture (temperature and interval) | Yes |
| MATLAB® and LabVIEW® tool boxes | Integrate camera data, infrared video and images into these software platforms to support R&D analysis |
| Battery | |
| Batteries (field-replaceable, rechargeable) | Two lithium ion smart battery packs with five-segment LED display to show charge level |
| Battery life | 2-3 hours per battery (Actual life varies depending on settings and usage) |
| Battery charge time | 2.5 hours to full charge |
| Battery charging system | Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter |
| AC operation | AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz) |
| Power saving | User selectable sleep and power off modes |
| Color palettes | |
| Standard palettes | 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted |
| Ultra Contrast™ palettes | 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra |
| General specifications | |
| Frame rate | 60 Hz or 9 Hz versions |
| Laser pointer | Yes |
| LED light (torch) | Yes |
| Color alarms (temperature alarms) | High temperature, low temperature, and isotherms (within range) |
| Center-point temperature measurement | Yes |
| Spot temperature | Hot and cold spot markers |
| User-definable spot markers | 3 user-definable spot markers |
| Center box | Expandable-contractible measurement box with MIN-MAX-AVG temp display |
| Infrared spectral band | 7.5 μm to 14 μm (long wave) |
| Operating temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature | -20 °C to +50 °C (-4 °F to 122 °F) |
| Relative humidity | 10% to 95% non-condensing |
| Safety | IEC 61010-1: Overvoltage category II, Pollution Degree 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic EM environment. CISPR 11: Group 1, Class A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15 Subpart B |
| Vibration | 0.03 g2/Hz (3.8 g), 2.5 g IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-29 |
| Drop | 25 g, IEC 68-2-29/Engineered to withstand 1 meter (3.3 feet) drop with standard lens |
| Size (H x W x L) | 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in) |
| Weight (battery included) | 1.54 kg (3.4 lb) |
| Enclosure rating | IEC 60529: IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty | Two-years (standard) |
| Recommended calibration cycle | Two-years (assumes normal operation and normal aging) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
