Basic Parameters
IR resolution: 640 × 480
SuperResolution: 1280 × 960
Detector type: Uncooled focal plane infrared detector
Thermal sensitivity (NETD)@ 30 °C: 50 mk (0.05 °C)
Spectral response: 7 to 14 μm
Image frame rate: 30 Hz
Lens Field of View (FOV): 25° x 19°
Spatial resolution (IFOV): 0.68 mrad
Minimum imaging distance: 0.25 m
Lens focal distance: f 24.8
Focus: Auto / Manual Focus
Lens recognition: Auto
Optional lens:
2x telephoto lens
4x telephoto lens
Wide-angle lens
Digital Zoom: 1-10x
Measurement Analysis
Temperature range: -20 °C to 1200 °C
Temperature measurement range:
-20 °C to 120 °C
0 °C to 650 °C
300 °C to 1200 °C
Intelligent range: Yes
Temperature accuracy: ±2 °C or 2%, whichever is greater (@ 23 °C ± 5 °C ambient temperature)
Temperature measurement area
Spots: 16
Lines: 8
Areas: 12
Image Display
Display Screen: 3.5" LCD, 640 × 480
Image mode: Thermal image, Visible image, PIP, Fusion
Palettes: Grey, Iron 10, IronRed, Rainbow, Grey10, GreyRed, MidGrey, Yellow and Rain
Shooting Function
Digital camera: Industrial grade digital camera with 13-megapixel lens
Memory card: Micro SD card, standard 32 GB; expandable to 64 GB, 128 GB
Shooting Mode: Support single frame and time-lapse shooting
Image format: .bmp .jpg
Data Connection
Bluetooth connection: Support BT4.2 LE
USB interface: Type-A, USB 2.0
HDMI interface: Mini HDMI interface, HDMI 1.4
Fully-radiometric video analysis via PC software: Fully-radiometric video analysis via PC software
Remote display via software: Yes
Remote operation via software: Yes
HDMI output: Support connection to a display or a projector via the HDMI interface
Ancillary Function
Laser: Yes
Temperature feature measurement: Support measuring the length of the temperature measurement line; support measuring the rectangular and circular area of the temperature measurement area
LED torch/flashlight: Support flashlight and flash mode
Power System
Battery type: 7.2V, 19Whr lithium battery, replaceable and rechargeable on field
Battery life: 2 to 3 hours/battery (*Actual life depends on settings and usage)
Charge Mode: 10-15 V DC charging
Charging time: 2.5 hours to full charge
Energy saving management: Auto screen-off
Battery charge:Ti SBC3B Two Bay Battery Charger (100 V ac to 240 V ac, 50/60 Hz, included), or in-Imager charging. Optional 12 V automotive charging adapter.
External power supply: Power adapter (110 to 220 V, 50/60 Hz AC power)
Physical Parameter
Operating temperature: -10 °C to 50 °C
Storage temperature: -20 °C to 50 °C, without battery
Relative humidity: 0% to 95% (non-condensing)
Dimensions: 27.9 cm x 12.2 cm x 17.5 cm
Weight: 1215 g
Supported Languages
Supported languages: Simplified Chinese, English, Japanese, Korean, Traditional Chinese
Includes:

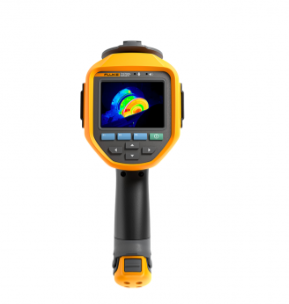

Fluke Ti480U Thermal Imager
Charger
Battery
Hard carrying case
HDMI cable
USB cable
Safety information
Report
Datasheet
The NEW Fluke Ultra Series Thermal Cameras is designed to provide advanced visual infrared experience. It comes with a smart intuitive user interface, increased thermal sensitivity to capture the smallest differences and the latest technology for on-screen clarity. A professional 640 x 480 Infrared Camera with improved spatial resolution and UltraFocus focusing technology makes the Ti480U/401U/300U go-to camera range for the professional moving to the next level.
| Function Parameter | Fluke Ti480u | Fluke Ti401u | Fluke Ti300u |
| Basic Parameters | |||
| IR resolution | 640 × 480 | 640 × 480 | 384 × 288 |
| SuperResolution | 1280 × 960 | - | - |
| Detector type | Uncooled focal plane infrared detector | ||
| Thermal sensitivity (NETD) @ 30 °C | 50 mk (0.05 °C) | 75 mk (0.075 °C) | 75 mk (0.075 °C) |
| Spectral response | 7 to 14 μm | ||
| Image frame rate | 30 Hz | 30 Hz | 30 Hz |
| Lens Field of View (FOV) | 25° x 19° | ||
| Spatial resolution (IFOV) | 0.68 mrad | 0.68 mrad | 1.14 mrad |
| Minimum imaging distance | 0.25 m | 0.1 m | |
| Lens focal distance | f 24.8 | f 15 | |
| Focus | Auto / Manual Focus | ||
| Lens recognition | Auto | ||
| Optional lens | 2x telephoto lens | ||
| 4x telephoto lens | |||
| Wide-angle lens | |||
| Digital Zoom | 1-10x | 1-10x | 1-4x |
| Measurement Analysis | |||
| Temperature range | -20 °C to 1200 °C | -20 °C to 650 °C | |
| Temperature measurement range | -20 °C to 120 °C | -20 °C to 120 °C | |
| 0 °C to 650 °C | 0 °C to 650 °C | ||
| 300 °C to 1200 °C | |||
| Intelligent range | Yes | Yes | Yes |
| Temperature accuracy | ±2 °C or 2%, whichever is greater (@ 23 °C ± 5 °C ambient temperature) | ||
| Temperature measurement area | Spots: 16 | ||
| Lines: 8 | |||
| Areas: 12 | |||
| Global temperature measurement correction | Support emissivity, environment temperature, reflected temperature, relative humidity, temperature measurement distance, IR window (temperature and transmittance) correction | ||
| Area temperature measurement correction | Yes | ||
| Area audible alarm | Support high and low temperature alarm for the highest, lowest and average temperature of the area | ||
| Temperature rise function | Reference temperature can be the highest, lowest, or custom temperature of the area | ||
| On-Imager analysis | The thermal photos or videos are directly analyzed in the Imager | ||
| Analysis software for PC | SmartView IR | ||
| Image Display | |||
| Display Screen | 3.5" LCD, 640 × 480 | ||
| Image mode | Thermal image, Visible image, PIP, Fusion | ||
| Palettes | Grey, Iron 10, IronRed, Rainbow, Grey10, GreyRed, MidGrey, Yellow and Rain | ||
| Palettes can be inverted | |||
| Support real-time palette preview and switching | |||
| Temperature span mode | Support automatic adjustment of temperature span (min. 3 °C) | ||
| Support manual adjustment of temperature span (min. 2 °C) | |||
| The maximum and minimum value of temperature span can be selected by touch (min. 2 °C) | |||
| Color and audible alarm | Yes. Above the temperature, below the temperature and between the temperature | ||
| Information displayed on the image | Display the global maximum, minimum, average temperature and temperature measurement parameters | ||
| High/low temperature tracking | Marking and automatically tracks high and low temperature points | ||
| IR-Fusion | |||
| Blending degree of a visual photo and an infrared thermal image | 0% to 100% | ||
| Picture-in-Picture (PIP) | Yes. The size, position and blending degree of infrared window can be adjusted | ||
| Shooting Function | |||
| Digital camera | Industrial grade digital camera with 13-megapixel lens | ||
| Memory card | Micro SD card, standard 32 GB; expandable to 64 GB, 128 GB | ||
| Shooting Mode | Support single frame and time-lapse shooting | ||
| Image format | .bmp .jpg | ||
| Screen freeze | Support single frame shooting and fully-radiometric video recording | Support single frame shooting | Support single frame shooting and fully-radiometric video recording |
| Code scanning function | Yes. A QR code can be scanned as a label | ||
| Annotation function | Support voice, text and label annotation | ||
| Fully-radiometric video recording | Support thermal video recording for analysis | Support thermal video recording for analysis | |
| Non-fully-radiometric video recording | Support thermal video, visible video recording (only for viewing, not for analysis) | Support thermal video, visible video recording (only for viewing, not for analysis) | |
| Video frame rate | 1 Hz to 9/16 Hz | 1 Hz to 9/16 Hz | |
| Video Format | .is5, .mp4 | .is5, .mp4 | |
| Gallery | Support viewing, editing and deleting captured images and video files | ||
| Data Connection | |||
| Bluetooth connection | Support BT4.2 LE | ||
| USB interface | Type-A, USB 2.0 | ||
| HDMI interface | Mini HDMI interface, HDMI 1.4 | ||
| Fully-radiometric video analysis via PC software | Yes | - | Yes |
| Remote display via software | Yes | - | Yes |
| Remote operation via software | Yes | - | Yes |
| HDMI output | Support connection to a display or a projector via the HDMI interface | ||
| Ancillary Function | |||
| Laser | Yes | ||
| Temperature feature measurement | Support measuring the length of the temperature measurement line; support measuring the rectangular and circular area of the temperature measurement area | ||
| LED torch/flashlight | Support flashlight and flash mode | ||
| Power System | |||
| Battery type | 7.2V, 19Whr lithium battery, replaceable and rechargeable on field | ||
| Battery life | 2 to 3 hours/battery (*Actual life depends on settings and usage) | ||
| Charge Mode | 10-15 V DC charging | ||
| Charging time | 2.5 hours to full charge | ||
| Energy saving management | Auto screen-off | ||
| Battery charge | Ti SBC3B Two Bay Battery Charger (100 V ac to 240 V ac, 50/60 Hz, included), or in-Imager charging. Optional 12 V automotive charging adapter. | ||
| External power supply | Power adapter (110 to 220 V, 50/60 Hz AC power) | ||
| Reliability and Certification | |||
| Safety standard | IEC 61010-1: pollution degree 2 | ||
| Electromagnetic Compatibility (EMC) | International: IEC 61326-1: Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) | ||
| Radio frequency | 2400 MHz to 2483.5 MHz | ||
| Radio output power | <100 mW | ||
| Laser | IEC 60825-1, Class 2; 650 nm; <1 mW | ||
| Ingress protection rating | IEC 60529: IP52 | ||
| Drop test | Designed for 1 m drop resistance | ||
| Physical Parameter | |||
| Operating temperature | -10 °C to 50 °C | ||
| Storage temperature | -20 °C to 50 °C, without battery | ||
| Relative humidity | 0% to 95% (non-condensing) | ||
| Dimensions | 27.9 cm x 12.2 cm x 17.5 cm | ||
| Weight | 1215 g | 1188 g | |
| Warranty and Maintenance | |||
| Recommended calibration period | 2 years | ||
| Supported Languages | |||
| Supported languages | Simplified Chinese, English, Japanese, Korean, Traditional Chinese | ||
| Optional Lenses | |||
| Lens name | Field of view | Minimum imaging distance | |
| Standard lens | 25° x 19° | 0.1 m (Ti300U)，0.25 m (Ti480/401U) | |
| Wide-angle lens | 44° x 34° | 0.1 m | |
| 2x telephoto lens | 12° x 9° | 1.0 m (Ti480U/401U), 0.25 m (Ti300U) | |
| 4x telephoto lens | 7° x 5° | 3.0 m (Ti480U/401U), 1 m (Ti300U) | |
