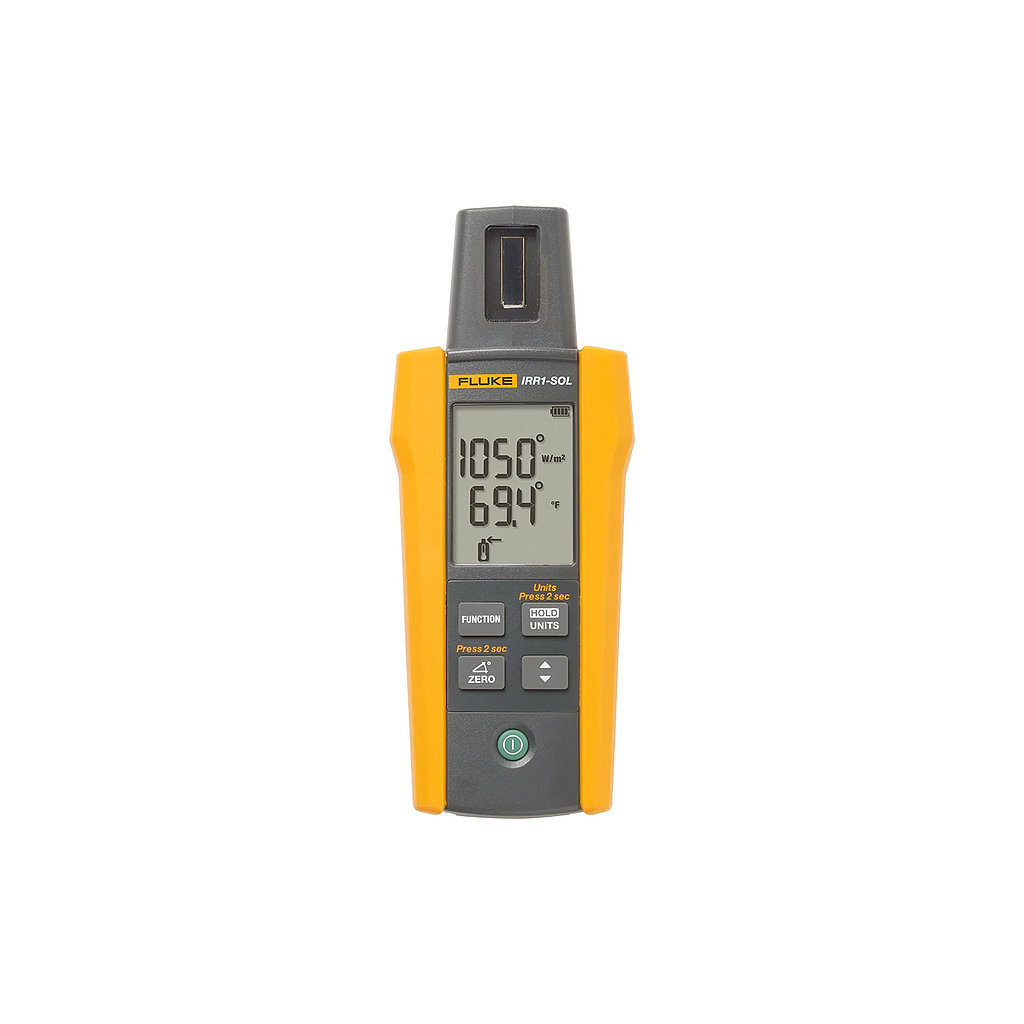

FLUKE FLK-IRR1-SOL Solar Irradiance Meter (0 ~ 1400 W/m²)

Irradiance

Measuring Range: 0 to 1400 W/m²

Resolution: 1 W/m²

Measuring Accuracy: ± (5 % + 5 Digit)

Temperature Measurement

Measuring range (°C): -22 °F to 212 °F (-30 °C to 100 °C)

Resolution: 0.2 °F (0.1 °C) / 1 °F @>100 °F

Measuring Accuracy: ±2 °F (±1 °C) @ 14 °F to 167 °F (-10 °C to 75 °C),

±4 °F (±2 °C) @ -22 °F to 14 °F (-30 °C to -10 °C) and 167 °F to 212 °F (75 °C to 100 °C)

Inclination Angle

Measuring Range: -90° to +90°

Resolution: 0.1°

Measuring Accuracy: ± 1.5°@ -50° to +50°, ±2.5° @ -85° to -50° and +50° to +85°, ±3.5° @ -90° to -85° and +85° to +90°

Compass

Measuring Range: 0° to 360°

Resolution: 1°

Measuring Accuracy: ±7°

Power Supply & Battery Life

Batteries: 4 AA Alkaline Batteries

Battery Life (typical): 50 hours (≤9000 readings)

Auto Power Off: 30 minutes

Dimensions

L x W x H: 5.90 x 3.14 x 1.37 in (150 x 80 x 35 mm)

Weight: 0.5 lb (231 g)

Includes: FLK-IRR1-SOL Solar Irradiance Meter, FLK80PR-IRR External Temperature Probe with Suction

Cup, C250 Carrying Case with Shoulder Strap, (4)

AA Alkaline Batteries, User Manual.
