LCD Screen
Type: 7 inch Capacitive touch screen
Refresh rate: 30 hz
LED backlight: Adjust display brightness for optimal viewing
Communication
Wireless interface: WiFi 802.11b/g/n, Range: 33 feet (10.06 meters)
Data transfer: USB and micro HDMI cable
FlukeConnect™: Save and share images via FlukeConnect™
Instant upload to the cloud: Yes, with FlukeConnect™
General Features
Color palettes: Visible light, grayscale or inverted
Internal memory: 6 GB
Physical buttons: Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button
Carrying case: Protective EVA case
Strap: Hand Strap and Neck Strap included
Power adapter: AC adapter/battery charger input
Battery: 6400mAh 3.7 volt rechargeable internal li-ion battery
Battery life: 3 hours at 50 % LED brightness
Dimensions: 6.98 x 8.85 inches (17.73 x 22.48 cm)
Weight: 1.95 lbs (0.88 Kg)
General Specifications and Safety
Tablet: IP54, dust protected and protected against water projected from a nozzle
Drop test: 2 meter (6.56 feet)
Operating temperature: 0 °C to 45 °C (32 °F to 113 °F), 50 °C (122 °F) for less than 10 minutes
Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Operating humidity: 90 % at 35 °C (95 °F), 75 % at 40 °C (104 °F), 45 % at 50 °C (122 °F)
Video Borescope Probe Specifications: 8.5mm Dual View (1.2M) (Included with DS703 FC)
Outer Diameter of Tip: 8.5mm
Length: 1.2 meter
Resolution: 1280 x 720 (720p) (HD)
Depth of Field (min): 35.5mm (Front) 35.5mm (Side)
Depth of Field (max: ) 111.7mm (Front) 111.7mm (Side)
Field of View: 75 degrees
Up-is-Up™ technology: Yes
Length of Distal Tip: 50mm
Outer Diameter of Conduit: 6.1mm
Conduit Pliability: Flexible but compliant
Waterproof: Waterproof to 2 psi
LED Type: Standard white
Still image format: JPG
Video recording format: MPEG compression
Digital zoom: Adjustable from 1x to 8x zoom
Camera Direction: Front and Side View
Streaming video: Via HDMI
Includings

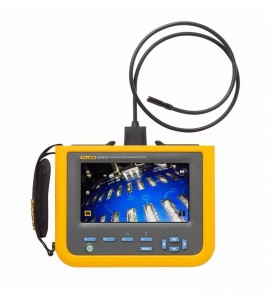

Diagnostic Videoscope with 1.2m, 8.5mm semi-rigid probe
Hand and neck strap
USB cable, AC power supply/battery charger
TPAK magnetic hanger, protective EVA case
