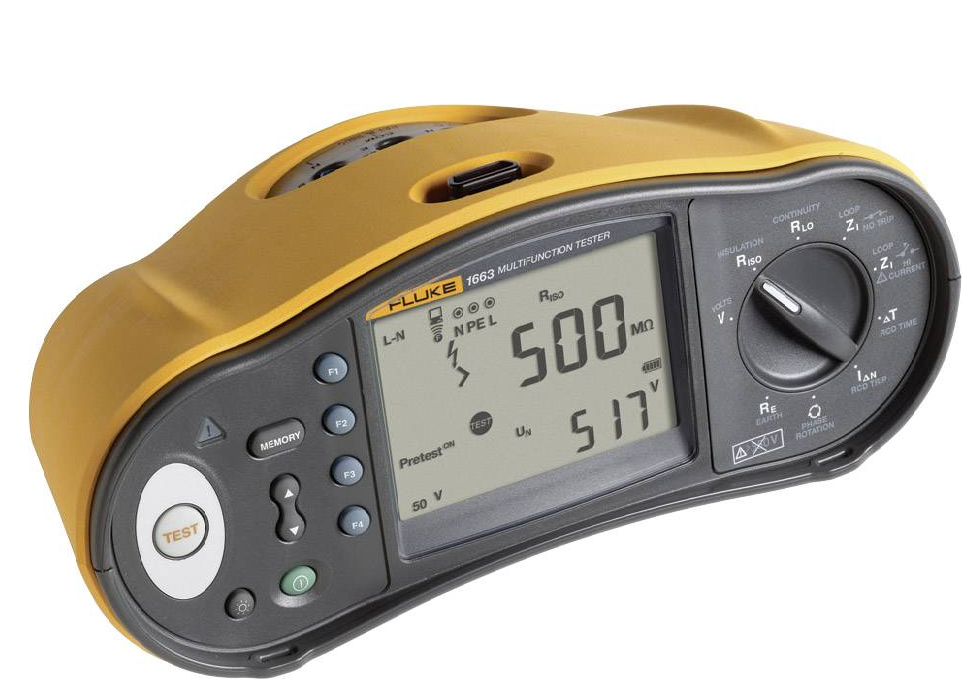

FLUKE FLK-1663 Multifunction Tester

AC Voltage Measurement: 500 V/± (0,8% + 3 digit)

Continuity Testing: 20 Ω, 200 Ω, 2000 Ω/± (1,5%+3 digit)

Insulation Resistance Measurement:

+ Test Voltage: 50, 100, 250, 500, 1000 V

+ Test Current:1 mA at 50 kΩ, 1 mA at 100 kΩ, 1 mA at 250 kΩ, 1 mA at 500 kΩ, 1 mA at 1000 kΩ

+ Insulation Range: 10 kΩ - 50 мΩ,

+ Accuracy: ± (3% + 3 digit)

Loop Impedance Measurement: 100 - 500 VAC (50/60 Hz)/± (3% + 6 digits) at no Trip mode, ± (2% + 4 digits) at Hi Current mode

PFC, PSC Test: 0 - 50 kA/ Determined by accuracy of loop resistance and mains voltage measurements.

RCD Testing: G, S, A, AC, B

Tripping Time Test (ΔT)

Tripping Current: 30% - 110% of RCD rated current/±5%

Earth Resistance Test: 200 Ω/±(3.5% + 10 digits)

Phase Sequence Indication

Size (L x W x H): 10 x 25 x 12.5 cm

Weight: 1.3 kg

Includes:

6x AA (IEC LR6) cell batteries

C1600 hard carrying case

Zero adapter

Heavy duty mains cord

STD standard test lead set

Padded carrying and waist strap

Quick reference guide

TP165X remote control probe and lead
