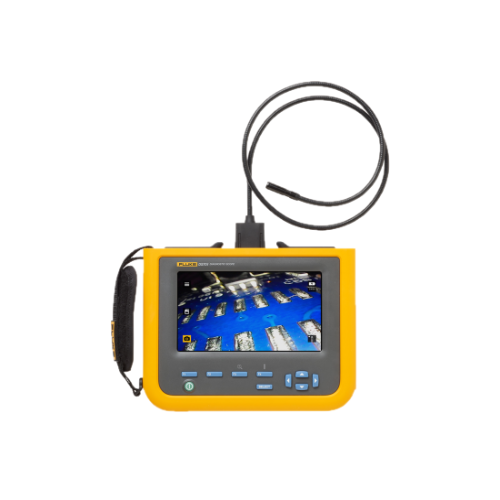

FLUKE DS701 Diagnostic Scope

Videoscope probe

Length: 1.2 meters (3.94 feet)

Type: Detachable, semi-ridged, waterproof, immersible to 1 meter or more in-depth

Diameter: 8.5 mm (0.33 inches), optional 3.8, 5.5 and 9 mm probes available

Material: Elastomer-coated steel

Lighting: Adjustable LED, on front, one side

Illumination: 53 Lux

Up is Up™ Technology: Appropriate image display, regardless of the orientation of the probe, 8.5 MM, 1.2 M probe only

Camera

Dual-view camera, forward and side

Resolution: 800 x 600 (480,000 pixels)

Still image format: JPG

Video Recording Format: AVI

Video Output Format: MPEG compression

Digital zoom: Adjustable from 1x to 8x zoom

Field of view: 68°

Depth of field: 25 mm to infinity

Video resolution: Standard

Minimum focus distance: 10 mm

Focus Type: Fixed

Rotation: 180°

Streaming video: N/A

LCD Screen

Touch Screen: N/A

Size: 7 inch (17.79 cm)

Refresh rate: 30 hz

Up is Up™ technology: Real-time upright adjustment for image

LED backlight: Adjust display brightness for optimal viewing

Communication

Wireless Interface: N/A

Data Transfer: USB

General Features

Color palettes: Visible light, grayscale or inverted

Internal memory: 6 GB

Physical buttons: Intuitive, easy-to-navigate button technology, 4 functional keys, 4 navigational, one capture or select button

Carrying case: Protective EVA case

Strap: Hand strap

Power adapter: AC adapter/battery charger input

Battery: 6400mAh 3.7 volt rechargeable internal li-ion battery

Battery life: 3 hours at 50 % LED brightness

Dimensions: 6.98 x 8.85 inches (17.73 x 22.48 cm)

Weight: 1.95 lbs (0.88 Kg)

IP Rating

Tablet: IP54, dust protected and protected against water projected from a nozzle

Probe: IP68, dust tight and immersion of 1 meter or more depth

Drop Test: 2 meters (6.56 feet)
