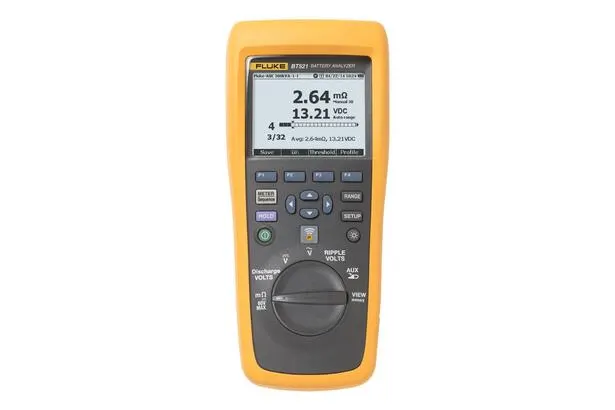

FLUKE BT521/APAC Battery Analyzer (3000 mΩ, 1000VDC, 600VAC)

Battery Resistance / Strap Resistance

Measuring range: 3 mΩ / 30 mΩ / 300 mΩ / 3000 mΩ

Resolution: 0.001 mΩ to 1 mΩ depending on range

Accuracy:

3 mΩ: 1% + 8 or 1% + 68 (depending on condition)

30 mΩ: 0.8% + 6

300 mΩ: 0.8% + 6 or 0.8% + 12

3000 mΩ: 0.8% + 6

DC Voltage (VDC)

Measuring range: 6 V, 60 V, 600 V, 1000 V

Resolution: 0.001 V to 1 V

Accuracy: 0.09% + 5 across all ranges

AC Voltage (VAC)

Measuring range: 600 V

Frequency: 45 Hz – 500 Hz (with 800 Hz filter)

Resolution: 0.1 V

Accuracy: 2% + 10

Frequency (displayed via VAC or AAC)

Measuring range: 500 Hz

Resolution: 0.1 Hz

Accuracy: 0.5% + 8

AC Voltage Ripple

Measuring range: 600 mV and 6000 mV (20 kHz max)

Resolution: 0.1 mV (600 mV) / 1 mV (6000 mV)

Accuracy:

600 mV: 3% + 20

6000 mV: 3% + 10

ADC/AAC (with Fluke i410 accessory)

Measuring range: 400 A

Resolution: 1 A

Accuracy: 3.5% + 2

Temperature

Measuring range: 0 °C – 60 °C

Resolution: 1 °C

Accuracy: ± 2 °C (± 4 °F)
