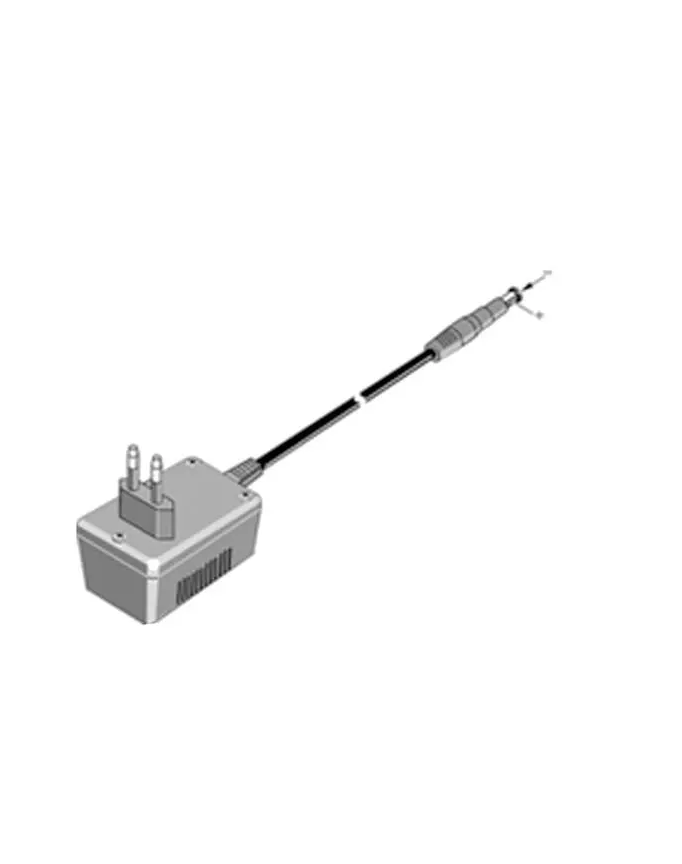

FLUKE BC190/830 Power Adapter

Input

Nominal input voltage: 100 Vac to 240 Vac, ±10 %

Input current: 0.35 A at max. load

Nominal input frequency: 50/60 Hz ±10 %

Mains inlet: IEC 60320-1 type C8

Input power, no load:  <0.1 W (@ 115 / 230 Vac)

Output

Output voltage: 18 Vdc ±5 %

Output current: 0 mA to 840 mA

Output cable length: 2 m (6.5 ft)

Output connector: 5 mm outer diameter, per DIN45232

Output polarity: Inner contact negative, outer contact positive

Physical characteristics

Dimensions of main unit :79 mm x 149 mm x 49 mm

Housing material: Heat resistant ABS

Color (housing and cable): Black

Weight :0.35 kg

Ingress Protection: IEC 60529, IP40

Environmental

Operating temperature :0 °C to 50 °C (32 °F to 122 °F), up to 90 % rel. humidity, no condensation

Storage temperature:  -40 °C to +70 °C, 10 % to 95 % rel. humidity

Max. altitude:  2000 m (6562 ft) above sea-level
