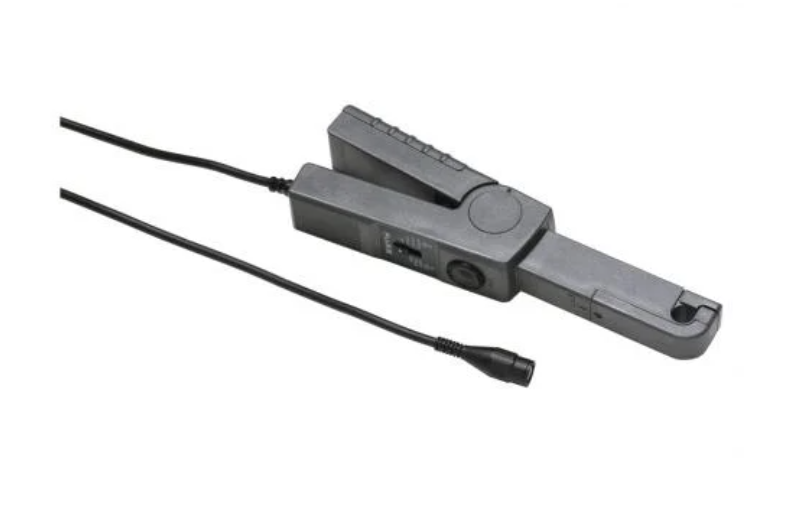

FLUKE 80i-110s AC/DC Probe

Nominal current range:10 A, AC/DC 100 A, AC/DC

Continuous current range:0.1 A - 10 A AC/DC; 1 A - 100 A AC/DC

Maximum non-destructive current:140 A - 2 kHz

Lowest measurable current:0.1 A

Basic accuracy:

100 mV/A setting: 50 mA to 10 A ±3% of reading +50 mA

10 mV/A setting: 50 mA to 40 A ±4% of reading +50 mA

40 A to 80 A ±12% of reading +50 mA

80 to 100 A ±15% of reading

Useable frequency:DC - 100 kHz

Output level(s):10 A range: 100 mV/A

100 A range: 10 mV/A

Zero error adjustment:Yes

Safety Specifications

Safety:CAT II, 600 V; CAT III, 300 V

Maximum voltage:600 V

Mechanical and General Specifications

Battery life:9 V, 55 h

Maximum conductor diameter:11.8 mm

Output cable length:1.6 m

BNC adapter:Yes
