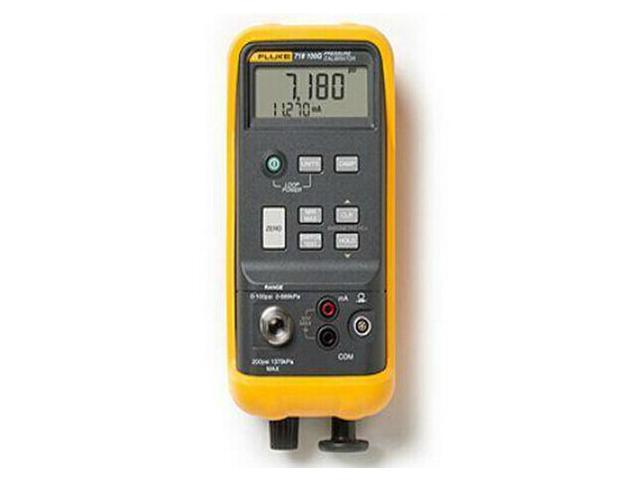

Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
Integrated pump
Measure Pressure: (internal sensor)
Accuracy: 0.025% full scale
Note: Dry air, non-corrosives only
Range: -12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
Resolution: 0.01 psi, 0.1 mbar, 0.01 kPa
Over Pressure: 2x Full Scale
Functions: zero, min/max, hold, damp
Maximum voltage: 30 volts: Non-operating
Size: 216 mm x 94 mm x 66 mm
Weight : 992 g
Power: 9V battery
Display: LCD, 5 digit
include:
Protective Yellow Holster with test lead storage
Instructions Sheet (14 languages)
Test Leads and Alligator Clip
Two 9V alkaline batteries
NIST - Traceable calibration report and data
Datasheet
Manual
| Technical Specifications |
| Standard |
| 718 Series |
|
| Measure Pressure |
(internal sensor) |
| Accuracy |
0.025% full scale |
| Functions |
zero, min/max, hold, damp |
| Note: |
Dry air, non-corrosives only |
| |
|
| 718 1G |
|
| Range: |
-1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa) |
| Resolution: |
0.0001 psi, 0.001 mbar, 0.0001 kPa |
| Over Pressure: |
5x Full Scale |
| Functions: |
Zero, Min, Max, Hold, Damp |
| |
|
| 718 30G |
|
| Range: |
-12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa) |
| Resolution: |
0.001 psi, 0.1 mbar, 0.01 kPa |
| Over Pressure: |
5x Full Scale |
| Functions: |
Zero, Min, Max, Hold, Damp |
| |
|
| 718 100G |
|
| Range: |
-12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa) |
| Resolution: |
0.01 psi, 0.1 mbar, 0.01 kPa |
| Over Pressure: |
2x Full Scale |
| Functions: |
Zero, Min, Max, Hold, Damp |
| |
|
| 718 300G |
|
| Range: |
-12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa ) |
| Resolution: |
0.01 psi, 1 mbar, 0.1 kPa |
| Over Pressure: |
375 PSI 25 bar |
| Functions: |
Zero, Min, Max, Hold, Damp |
|
| Fluke 718 series via using 700 Series Pressure Modules |
| Range: |
29 pressure modules, 0 – 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs |
| Resolution: |
Per pressure module specs |
| Accuracy: |
To 0.025 % of full span, per pressure module specs |
| Functions: |
Zero, Min, Max, Hold, Damp |
| |
Note: media compatibility per pressure module specs |
|
| Fluke 718 series via built in pump |
| Range: |
-12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 °C), in H20 (20 °C), cm H20 (4 °C), cm H20 (20 °C), bar, mbar, kPa, inHg, mmHg, kg/cm |
| Loop Power: |
Range: 24 V dc |
| |
Accuracy: +/- 10 % |
| |
Note: Drive; 20 mA into 1000 Ω for battery > 6.8V; 700 Ω for battery 5.8 to 6.8 V |
| mA Measure: |
Range: 0 mA to 24 mA |
| |
Resolution: 0.001 mA |
| |
Accuracy: 0.015 % + 1 count |
|
| General Specifications |
| Maximum voltage |
|
| Temperature |
|
| Operating Temperature |
|
| Relative Humidity |
| |
95 % (10 °C to 30 °C); 75 % (30 °C to 40 °C); 45 % (40 °C to 50 °C); 35 % (50 °C to 55 °C) |
|
| Operating Altitude |
|
| Shock |
|
| Vibration |
| |
Random, 2 g, 5 Hz – 500 Hz |
|
| Safety |
| |
CSA C22.2 No. 1010.1: 1992 |
|
| EMC |
| |
EN50082-1: 1992 and EN55022: 1994 Class B |
|
| Size |
| |
216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in) |
|
| Weight |
|
| Power, battery life |
| |
9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718 |
|
| Battery Life |
| |
4 to 20 hours typical, depending on functions used |
|
Option
Clips
AC220 AC220 SureGrip™ Alligator Clips
Test Probes
TP220 TP220 SureGrip™ Industrial Test Probes
Differential Pressure Modules
700P00 700P00 Differential Pressure Module
700P01 700P01 Differential Pressure Module
700P02 700P02 Differential Pressure Module
700P03 700P03 Differential Pressure Module
700P04 700P04 Differential Pressure Module
Pumps and Accessories
700PMP 700 PMP Pressure Pump
700HTH-1 Fluke 700HTH-1 Hydraulic Test Hose
700ILF Fluke 700ILF In-line Filter
700PRV-1 Fluke 700PRV-1 Pressure Relief Valve Kit
700PTP-1 Fluke 700PTP-1 Pneumatic Test Pump
700HTP-2 Fluke 700HTP-2 Hydraulic Test Pump
Differential Pressure Module Wet
700P22 700P22 Differential Pressure Module Wet
700P23 700P23 Differential Pressure Module Wet
700P24 700P24 Differential Pressure Module Wet
Absolute Pressure Modules
700PA3 700PA3 Absolute Pressure Module
700PA4 700PA4 Absolute Pressure Module
700PA5 700PA5 Absolute Pressure Module
700PA6 700PA6 Absolute Pressure Module
700PRV 700PRV Pressure Relief Valve Kit
Cases and Holsters
C101 C101 Hard Case
C550 C550 Tool Bag
C789 C789 Meter & Accessory Case
CXT170 CXT170 Extreme Case
Dual Pressure Modules
700PD2 700PD2 Dual Pressure Module
700PD3 700PD3 Dual Pressure Module
700PD4 700PD4 Dual Pressure Module
700PD5 700PD5 Dual Pressure Module
700PD6 700PD6 Dual Pressure Module
700PD7 700PD7 Dual Pressure Module
Vacuum Pressure Modules
700PV3 700PV3 Vacuum Pressure Module
700PV4 700PV4 Vacuum Pressure Module
Test Leads
TL220 TL220 SureGrip™ Industrial Test Lead Kit
TL221 TL221 SureGripTM Test Lead Extension Kit
TL223 TL223 Electrical Test Lead Set
TL224 TL224 SureGripTM Insulated Test Leads
TL71 TL71 Premium Test Lead Set
TL75 TL75 Hard Point™ Test Lead Set
