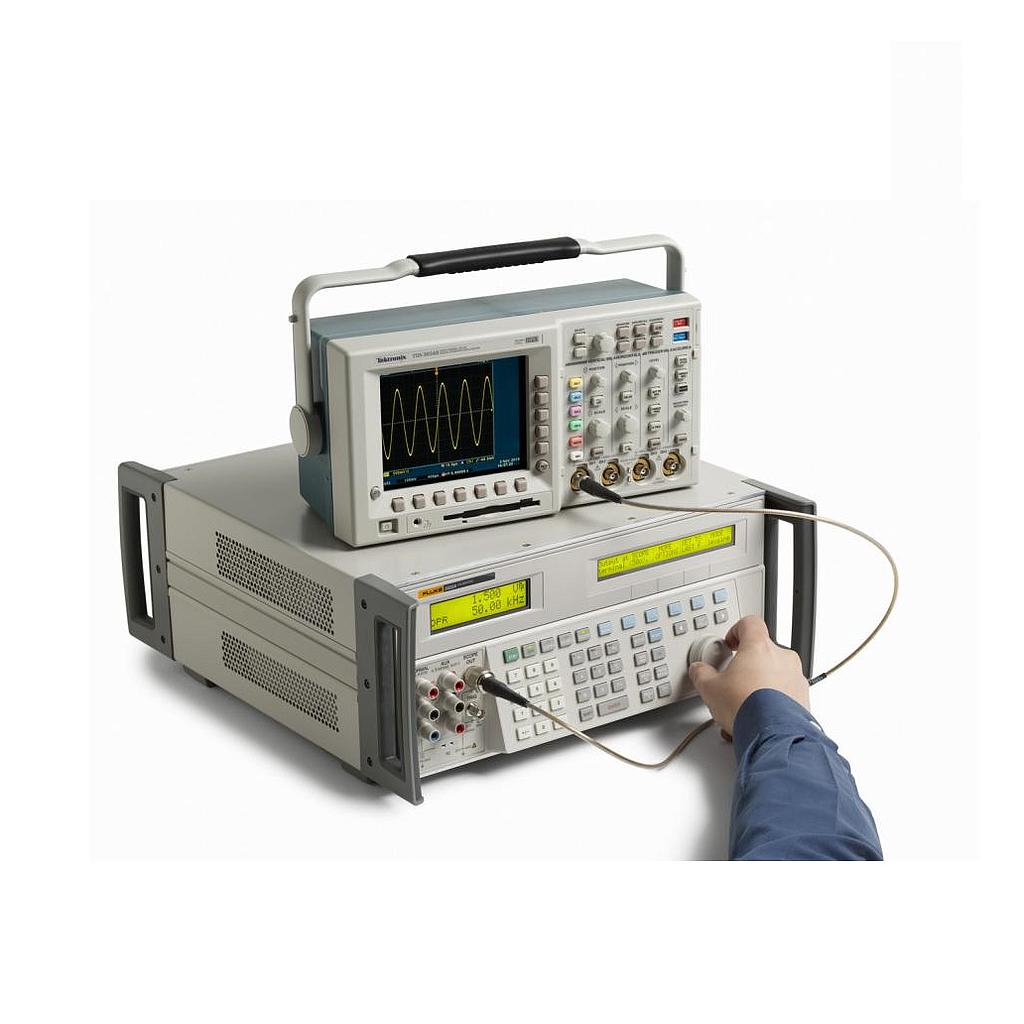

Fluke (Calibration) 5522A Multi-product Calibrator

• Direct volts: 0 V to ± 1020 V

• Direct current: 0 A to ± 20.5 A

• Alternating volts: 1 mV to 1020 V; 10 Hz to 500 kHz

• Volt/hertz: 1000 V @10 kHz/330 V @100 kHz

• Alternating current: 29 µA to 20.5 A; 10 Hz to 30 kHz

• Waveforms: Sine, square, triangle, truncated sine

• Resistance: 0 Ω to 1100 MΩ

• Capacitance: 220 pF to 110 mF

• Power (phantom loads): 20.9 kW

• Phase control: 0.01°

• Thermocouple (source and measure temperature): B, C, E, J, K, L, N, R, S, T, U; 10 µV/°C and 1 mV/°C

• RTD (source temperature): Pt 385-100 Ω, Pt 3926-100 Ω Pt 3916-100 Ω, Pt 385-200 Ω, Pt 385-500 Ω, Pt 385 1000 Ω, PtNi 385-120 Ω (Ni120), Cu 427 10 Ω

• Interfaces: RS-232, IEEE 488

• Phase lock: Yes

• Frequency uncertainty: < 2.5 ppm

• External frequency reference (10 MHz): Yes
