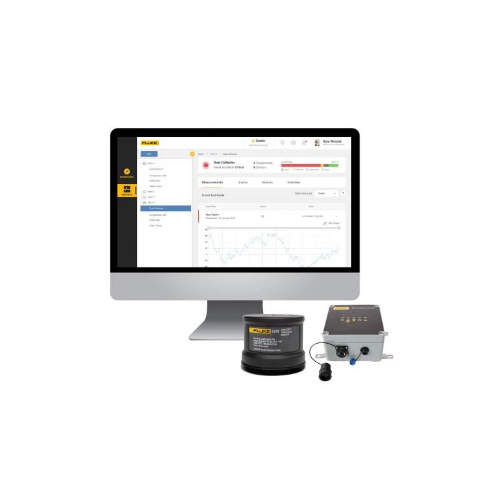

FLUKE 3563-16KIT Analysis Vibration Sensor System

Data Transmission

Transmission interval: Configurable, minimum default is every 10 minutes

Range Frequency range: 2 Hz – 10,000 Hz Z (0 Hz – 1,000 Hz X, Y)

Amplitude range z-axis: +/- 50g; x- and y-axis: +/- 16g

Sampling frequency: 18.5 – 62.5 kHz

Temperature

Measurement range: -20°C to 85°C (-4°F to 185°F)

Storage range: -20°C to 85°C (-4°F to 185°F)

Mechanical

Size(D x H): 68mm x 53.4mm

Weight: 199.5g (145g without batteries)

Ingress protection class: IP67

Shock Limit: 5000 g peak

Power: 6 x 3.6V 1/2 AA Li-SOCl 2 battery

Battery lifetime: At least 1 year

Datasheet
