Detector:
IR Resolution: 640 × 480
SuperResolution: Enhanced to 1280 × 960 pixels
Thermal Sensitivity* (* Under best case scenario): <25 mK @ 30 °C
Field of View (FOV): 25° × 19°
Spatial Resolution (IFOV): 0.68 mRad
Digital Zoom: 1 to 35x
Detector Type: Focal Plane Array (FPA), Uncooled Infrared Detector
Spectral Response: 8 to 14 um
Lens Aperture: F 1.0
Lens Recognition: Auto
Minimum Focus Distance: 0.2 m
Focus System: Auto/Manual
Frame Rate: 9 Hz
Measurement and Analysis:
Temperature Range: -40 °C to 1200 °C
Temperature Measurement Range: -40 °C to 150 °C; 0 °C to 350 °C; 0 °C to 700 °C; 300 °C to 1200 °C
Temperature Accuracy: ±2 °C or ±2% of reading, whichever is greater (normal temperature, 23 °C typical)
Custom Temperature Measurement Point: 10 points
Custom Temperature Measurement Area: 10 areas (circle or rectangle)
Line Temperature Measurement: 10 lines
Image Display:
Display: OLED touchscreen, 170° visual range
Display Size: 5.5 inches
Display Contrast: 100000: 1
Display Resolution: 1920 × 1080 pixels, 1080P UHD display
Power and Environment:
Battery Type: Li-ion batteries (3 pcs)
Battery Life: > 3.5 hrs for continuous use @ ambient temperature of 25 °C
Weight: 1550 g (with battery)
Dimensions: 148 mm × 204 mm × 86 mm
Certification Standards: IEC 61326-1:Industrial Electromagnetic Environment; CISPR 11:Group 1, Class A
Tripod Mounting Base: UNC 1/4''-20 Standard Tripod Mounting Thread
Accessories:

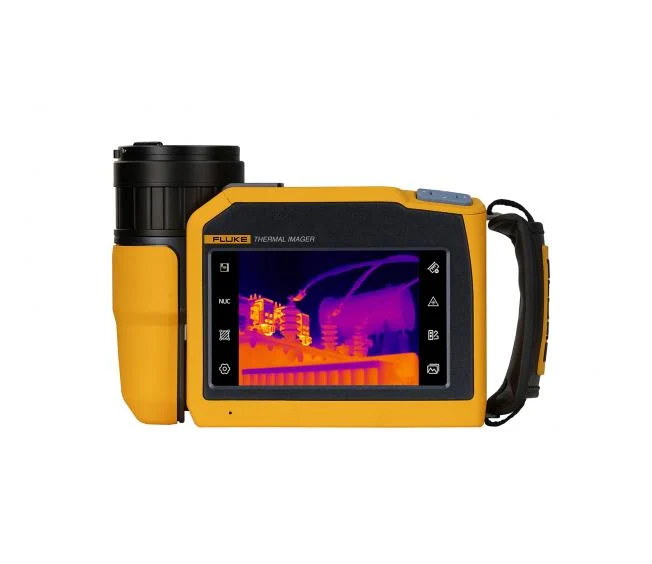

- Fluke Ti Thermal Camera (standard lens)
- Rechargeable Li-ion Batteries (3 pcs)
- Power Adapter
- Battery Charger
- Lens Cover
- USB Cable
- HDMI Cable
- High-Speed SD Card
- Card Reader
- Safety Information
- Quick Reference Guide
- Hand Strap
- Neck Strap
- Hard Carrying Case
